LY132

Toyota DYNA-150-TOYOACE-G15 · 1999 · 4,182 parts · 205 categories

← Back to categories

4,182 items

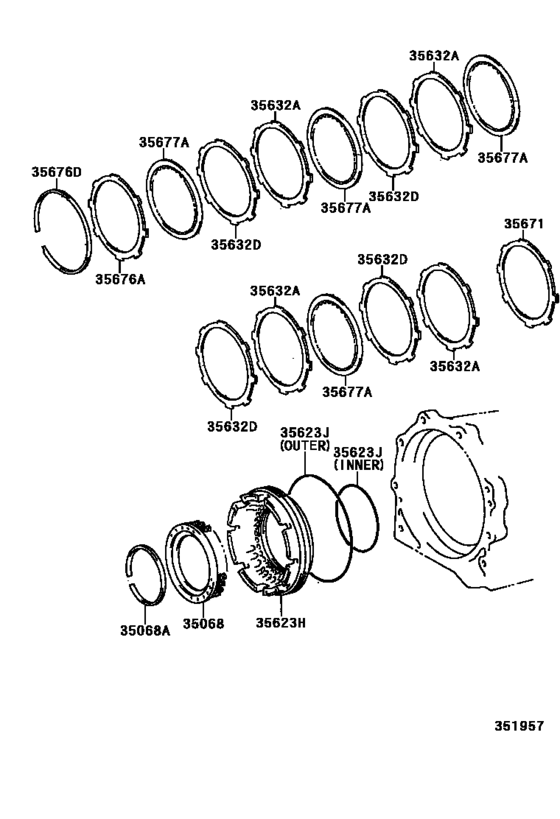

Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM) 14

#	OEM	Part name
35068	35068-36010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-87001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-25010	Piston, 1St & Reverse Brake
35623	90301-94002	Ring, O (For 1St & Reverse Brake)
35623	90301-99030	Ring, O (For Overdrive Brake Piston)
35632	35632-60030	Plate, Brake (For 1St & Reverse Brake)
35632	35632-60031	Plate, Brake (For 1St & Reverse Brake)
35632	35632-60070	Plate, Brake (For 1St & Reverse Brake)
35671	35671-36010	Plate, Brake Cushion
35676	35676-60050	Flange, Brake (For 1St & Reverse Brake)
35676	35676-60060	Flange, Brake (For 1St & Reverse Brake)
35676	35676-60070	Flange, Brake (For 1St & Reverse Brake)
35676	90521-99109	Ring, Hole Snap (For Overdrive Brake Return Spring)
35677	35633-60030	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-36010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35623-25010	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35632-60030	Plate, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35632-60031	Plate, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35632-60070	Plate, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35633-60030	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35671-36010	Plate, Brake Cushion	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35676-60050	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35676-60060	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
35676-60070	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
90301-94002	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
90301-99030	Ring, O (For Overdrive Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
90520-87001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
90521-99109	Ring, Hole Snap (For Overdrive Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([05.1999 - ] A44DE,A443E (9905- )LY132,212..ATM)
