LY111

Toyota DYNA-150-TOYOACE-G15 · 1996 · 3,760 parts · 181 categories
LY111 ×

← Back to categories

3,760 items

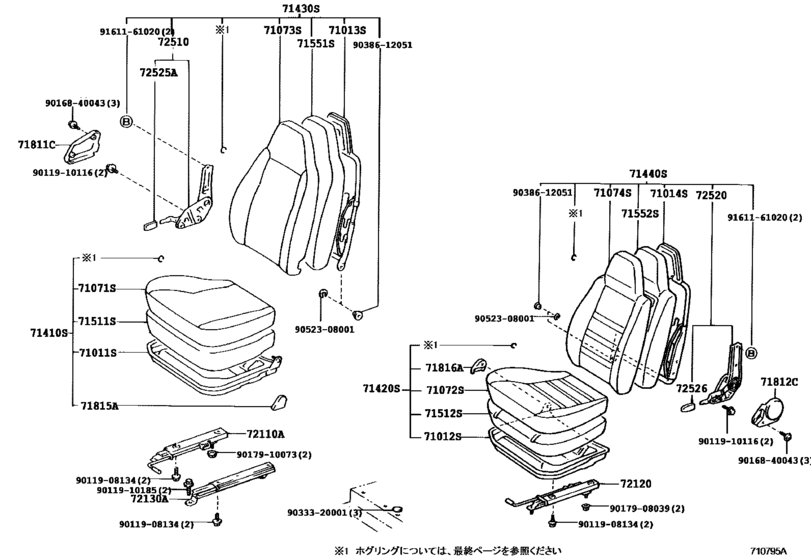

Seat & Seat Track ([08.1997 - ] (9708- )IV5) 48
#OEMPart name
71011 71011-37020 Frame Sub-Assy, Front Seat Cushion, Rh
71011 71011-37060 Frame Sub-Assy, Front Seat Cushion, Rh
71012 71012-95412 Frame Sub-Assy, Front Seat Cushion, Lh
71013 71013-37080 Frame Sub-Assy, Front Seat Back, Rh
71014 71014-37020 Frame Sub-Assy, Front Seat Back, Lh
71071 71071-37160-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-37460-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-37370-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-37600-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-37460-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-37490-B1 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-37500-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-37531-B2 Cover, Front Seat Back, Lh(For Separate Type)
71410 71410-37270-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-37510-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-37370-B1 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-37370-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-37600-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-37550-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-37590-B0 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-37591-B2 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-37700-B0 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-37020 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-37030 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-37070 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-37010 Pad, Front Seat Back, Lh(For Separate Type)
71811 71811-95J00-B0 Cover, Reclining Adjuster, Rh
71812 71812-95J00-B0 Cover, Reclining Adjuster, Lh
71815 71815-95J00-B0 Cover, Front Seat Cushion Hinge, Rh
71816 71816-95J00-B0 Cover, Front Seat Cushion Hinge, Lh
72110 72110-37010 Track Assy, Front Seat, Outer Rh
72120 72120-37010 Track Assy, Front Seat, Outer Lh
72130 72130-37010 Track Assy, Front Seat, Inner Rh
72510 72510-37010-B0 Adjuster Assy, Reclining Seat Back, Rh
72520 72520-37020-B0 Adjuster Assy, Reclining Seat Back, Lh
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
9011908134 90119-08134 BOLT
9011910116 90119-10116 New Genuine Part
9011910116 90119-10229 BOLT
9011910185 90119-10185 Bolt
9016840043 90168-40043 SCREW
9017908039 90179-08039 New Genuine Part
9017910073 90179-10073 New Genuine Part
9033320001 90333-20001 PLUG
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
