LY100

Toyota DYNA-100 · 1995 · 2,929 parts · 157 categories

← Back to categories

2,929 items

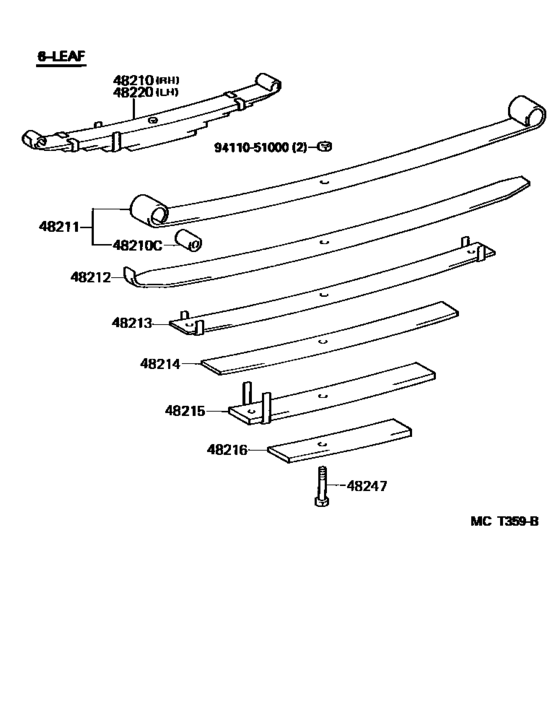

Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN) 10

#	OEM	Part name
48210	48210-26381	Spring Assy, Rear Rh
48210	48299-26540	Bush(For Rear Spring Leaf)
48211	48201-26380	Leaf, Rear Spring, No.1
48212	48212-26381	Leaf, Rear Spring, No.2
48213	48202-26380	Leaf, Rear Spring, No.3
48214	48214-26380	Leaf, Rear Spring, No.4
48215	48203-26381	Leaf, Rear Spring, No.5
48216	48216-26380	Leaf, Rear Spring, No.6
48247	48247-36040	Bolt, Rear Spring, Center
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48201-26380	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48202-26380	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48203-26381	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48210-26381	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48212-26381	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48214-26380	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48216-26380	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48247-36040	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
48299-26540	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
94110-51000	Nut(For Steering Center Arm)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )ARL,GEN)
