LY100

Toyota DYNA-100 · 1995 · 2,929 parts · 157 categories

← Back to categories

2,929 items

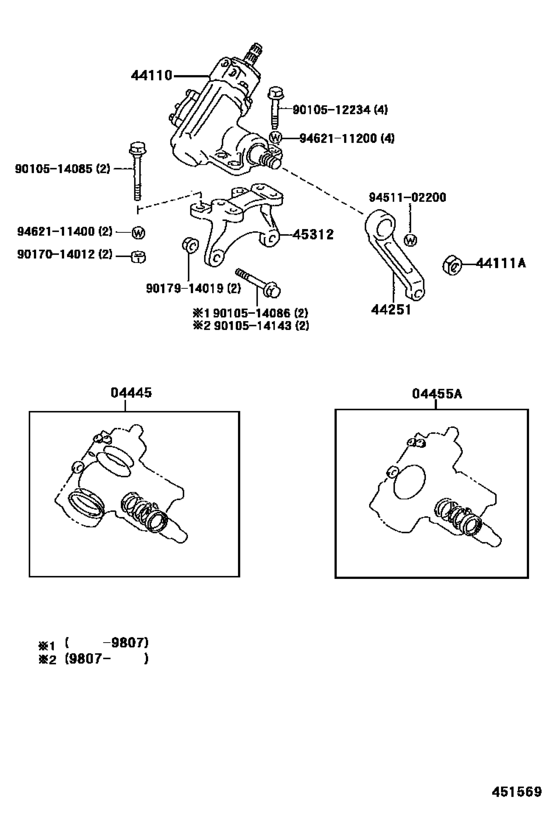

Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN) 15

#	OEM	Part name
4445	04445-25060	Gasket Kit, Power Steering Gear(For Recirculating Ball)
4455	04455-25040	Gasket Kit, Power Steering Cross Shaft Overhole
44110	44110-26070	Gear Assy, Power Steering
44111	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
44251	45411-26120	Arm, Pitman
45312	45312-26170	Bracket, Steering Gear Housing
9010512234	90105-12234	New Genuine Part
9010514085	90105-14085	New Genuine Part
9010514086	90105-14086	New Genuine Part
9010514143	90105-14143	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017914019	90179-14019	Nut
9451102200	94511-02200	WASHER
9462111200	94621-11200	New Genuine Part
9462111400	94621-11400	WASHER

OEM	Part name	Category
04445-25060	Gasket Kit, Power Steering Gear(For Recirculating Ball)	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
04455-25040	Gasket Kit, Power Steering Cross Shaft Overhole	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
44110-26070	Gear Assy, Power Steering	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
45312-26170	Bracket, Steering Gear Housing	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
45411-26120	Arm, Pitman	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90105-12234	New Genuine Part	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90105-14085	New Genuine Part	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90105-14086	New Genuine Part	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90105-14143	New Genuine Part	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
90179-14019	Nut	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
94511-02200	WASHER	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
94621-11200	New Genuine Part	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
94621-11400	WASHER	Front Steering Gear & Link ([05.1995 - ] POWER STEERING (9505- )EUR ; (9505- )LY100..LHD..GEN)
