Search › Model › LY100

LY100

Toyota DYNA-100 · 1995 · 2,929 parts · 157 categories

2,929 items

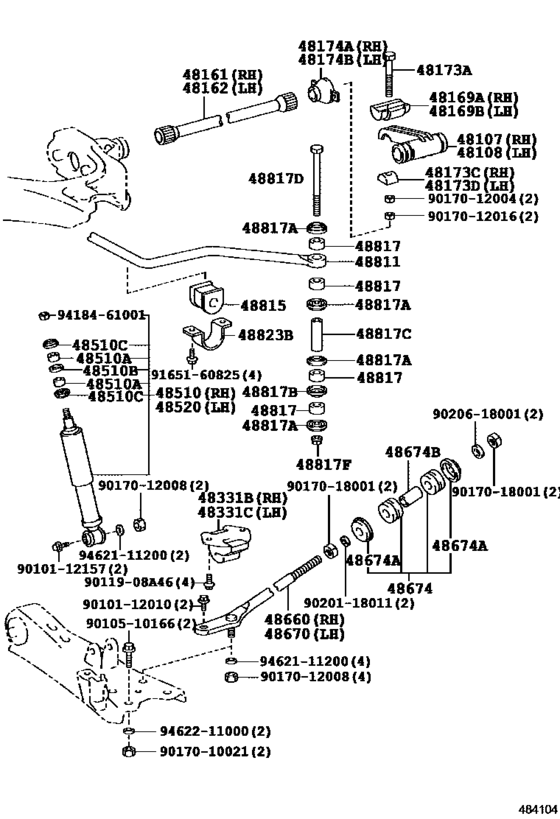

Front Spring & Shock Absorber ([05.1995 - ] (9505- )) 43

#	OEM	Part name
48107	48107-26020	Arm Sub-Assy, Anchor, Rh
48108	48108-26020	Arm Sub-Assy, Anchor, Lh
48161	48161-26070	Spring, Torsion Bar, Rh
48162	48162-26070	Spring, Torsion Bar, Lh
48169	48169-26020	Swivel, Anchor Arm
48173	90101-12104	Bolt, Hexagon(For Anchor Arm Adjusting)
48173	48173-27010	Seat, Anchor Arm Adjuster
48174	48174-34010	Cover, Torsion Bar Dust
48331	48331-26040	Bumper, Front Spring, No.1
48510	48511-29376	Absorber Assy, Shock, Front Rh
48510	90948-01003	Rubber Cushion
48510	90948-02017	Retainer, Cushion, No.1(For Front Shock Absorber)
48510	90948-02002	Retainer, Steering Damper Cushion
48660	48660-26011	Bar Assy, Strut, Rh
48670	48670-26011	Bar Assy, Strut, Lh
48674	48674-26010	Cushion, Strut Bar
48674	90948-02062	Retainer, Cushion(For Strut Bar Cushion)
48674	90387-18005	Collar(For Strut Bar Cushion)
48811	48811-26060	Bar, Stabilizer, Front
48815	48815-26020	Bush, Front Stabilizer Bar, No.1
48817	90948-01002	Cushion
48817	90948-02004	Cushion Retainer
48817	90948-02005	Retainer No.2
48817	90440-14004	Collar(For Stabilizer Bar)
48817	90101-10090	Bolt(For Front Stabilizer)
48817	94184-61001	Nut(For Front Stabilizer Bar)
48823	48823-26050	Cover, Front Stabilizer Bracket
48823	48823-26120	Cover, Stabilizer Link(For Rear)
9011908	90119-08A46	BOLT WWASHER
9010112010	90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)
9010112157	90101-12157	New Genuine Part
9010510166	90105-10166	BOLT
9017010021	90170-10021	Nut(For Steering Center Arm)
9017012004	90170-12004	NUT
9017012008	90170-12008	NUT
9017012016	90170-12016	New Genuine Part
9017018001	90170-18001	NUT
9020118011	90201-18011	WASHER
9020618001	90206-18001	WASHER
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9462111200	94621-11200	New Genuine Part
9462211000	94622-11000	WASHER

OEM	Part name	Category
48107-26020	Arm Sub-Assy, Anchor, Rh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48108-26020	Arm Sub-Assy, Anchor, Lh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48161-26070	Spring, Torsion Bar, Rh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48162-26070	Spring, Torsion Bar, Lh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48169-26020	Swivel, Anchor Arm	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48173-27010	Seat, Anchor Arm Adjuster	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48174-34010	Cover, Torsion Bar Dust	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48331-26040	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48511-29376	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48660-26011	Bar Assy, Strut, Rh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48670-26011	Bar Assy, Strut, Lh	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48674-26010	Cushion, Strut Bar	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48811-26060	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48815-26020	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48823-26050	Cover, Front Stabilizer Bracket	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
48823-26120	Cover, Stabilizer Link(For Rear)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90101-10090	Bolt(For Front Stabilizer)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90101-12104	Bolt, Hexagon(For Anchor Arm Adjusting)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90101-12157	New Genuine Part	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90105-10166	BOLT	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90119-08A46	BOLT WWASHER	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90170-10021	Nut(For Steering Center Arm)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90170-12004	NUT	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90170-12008	NUT	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90170-12016	New Genuine Part	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90170-18001	NUT	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90201-18011	WASHER	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90206-18001	WASHER	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90387-18005	Collar(For Strut Bar Cushion)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90440-14004	Collar(For Stabilizer Bar)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-01002	Cushion	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-01003	Rubber Cushion	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-02002	Retainer, Steering Damper Cushion	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-02004	Cushion Retainer	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-02005	Retainer No.2	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-02017	Retainer, Cushion, No.1(For Front Shock Absorber)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
90948-02062	Retainer, Cushion(For Strut Bar Cushion)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
94184-61001	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
94621-11200	New Genuine Part	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
94622-11000	WASHER	Front Spring & Shock Absorber ([05.1995 - ] (9505- ))
