LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories

← Back to categories

4,091 items

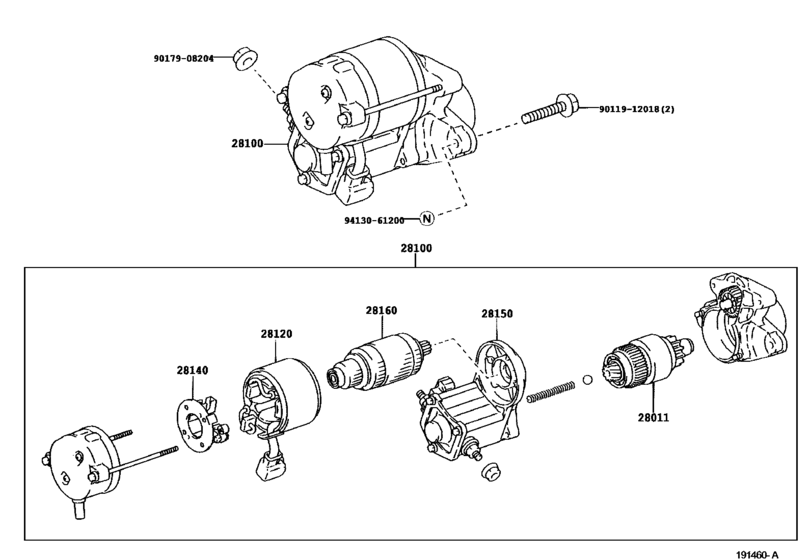

Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L) 12

#	OEM	Part name
28011	28011-54380	Clutch Sub-Assy, Starter
28100	28100-54340	Starter Assy
28100	28100-54380	Starter Assy
28120	28120-54380	Yoke Assy, Starter
28140	28140-54380	Holder Assy, Starter Brush
28150	28150-54340	Switch Assy, Magnet Starter
28150	28150-54380	Switch Assy, Magnet Starter
28160	28160-54380	Armature Assy, Starter
9011912018	90119-12018	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9413061200	94130-61200	Nut

OEM	Part name	Category
28011-54380	Clutch Sub-Assy, Starter	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28100-54340	Starter Assy	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28100-54380	Starter Assy	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28120-54380	Yoke Assy, Starter	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28140-54380	Holder Assy, Starter Brush	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28150-54340	Switch Assy, Magnet Starter	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28150-54380	Switch Assy, Magnet Starter	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
28160-54380	Armature Assy, Starter	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
90080-18070	NUT, WWASHER	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
90119-12018	New Genuine Part	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
90179-08204	Nut	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)
94130-61200	Nut	Starter ([08.2001 - 07.2006] 12V 2.0KW (0108-0607)5L)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 181
Collected: 2026-08-02
