LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories

4,091 items

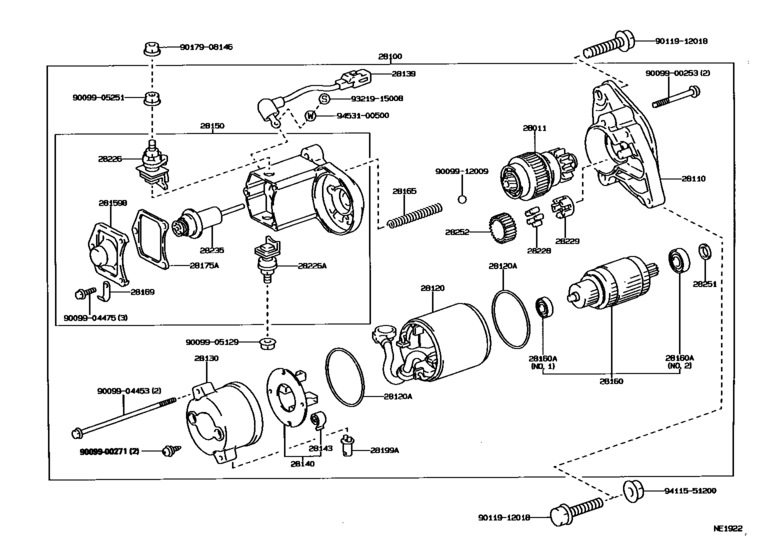

Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L) 41

#	OEM	Part name
28011	28011-54380	Clutch Sub-Assy, Starter
28100	28100-54340	Starter Assy
28100	28100-54380	Starter Assy
28110	28110-54380	Housing Assy, Starter Drive
28120	28120-54380	Yoke Assy, Starter
28120	90099-14064	Rubber(For Starter Yoke)
28130	28130-54380	Frame Assy, Starter Commutator End
28139	28139-54380	Wire, Lead, No.1(For Starter)
28140	28140-54380	Holder Assy, Starter Brush
28143	28143-54380	Spring, Starter Brush
28150	28150-54340	Switch Assy, Magnet Starter
28150	28150-54380	Switch Assy, Magnet Starter
28159	28159-54380	Cover, Magnet Switch
28160	28160-54380	Armature Assy, Starter
28160	90099-10197	Bearing, Starter Armature
28160	90099-10208	Bearing, Starter Armature
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-54380	Clamp, Starter Motor Lead Wire
28175	28175-54380	Gasket, Magnet Switch Cover
28199	28199-74110	Cover, Starter End Frame
28226	28226-54340	Starter Kit, Battery Terminal
28226	28226-54380	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-54380	Plunger, Magnet Switch
28251	28254-54380	Pinion, Starter Drive
28252	28254-64130	Pinion, Starter Drive
9009900253	90099-00253	New Genuine Part
9009900271	90099-00271	Screw, Starter
9009904453	90099-04453	New Genuine Part
9009904475	90099-04475	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9011912018	90119-12018	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9321915008	93219-15008	New Genuine Part
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9453100500	94531-00500	WASHER,WAVE

OEM	Part name	Category
28011-54380	Clutch Sub-Assy, Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28100-54340	Starter Assy	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28100-54380	Starter Assy	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28110-54380	Housing Assy, Starter Drive	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28120-54380	Yoke Assy, Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28130-54380	Frame Assy, Starter Commutator End	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28139-54380	Wire, Lead, No.1(For Starter)	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28140-54380	Holder Assy, Starter Brush	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28143-54380	Spring, Starter Brush	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28150-54340	Switch Assy, Magnet Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28150-54380	Switch Assy, Magnet Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28159-54380	Cover, Magnet Switch	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28160-54380	Armature Assy, Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28169-54380	Clamp, Starter Motor Lead Wire	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28175-54380	Gasket, Magnet Switch Cover	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28199-74110	Cover, Starter End Frame	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28226-54340	Starter Kit, Battery Terminal	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28226-54380	Starter Kit, Battery Terminal	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28226-72010	Starter Kit, Motor Terminal	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28229-74070	Retainer, Starter Idle Gear	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28235-54380	Plunger, Magnet Switch	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28254-54380	Pinion, Starter Drive	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
28254-64130	Pinion, Starter Drive	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-00253	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-00271	Screw, Starter	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-04453	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-04475	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-05251	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-10197	Bearing, Starter Armature	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-10208	Bearing, Starter Armature	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-12009	Ball, Starter Clutch	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90099-14064	Rubber(For Starter Yoke)	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90119-12018	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90179-08146	Nut	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
90179-08204	Nut	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
93219-15008	New Genuine Part	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
94531-00500	WASHER,WAVE	Starter ([01.1996 - 08.2001] 12V 2.0KW (9601-0108)2L,5L)
