Search › Model › LXS12
LXS12

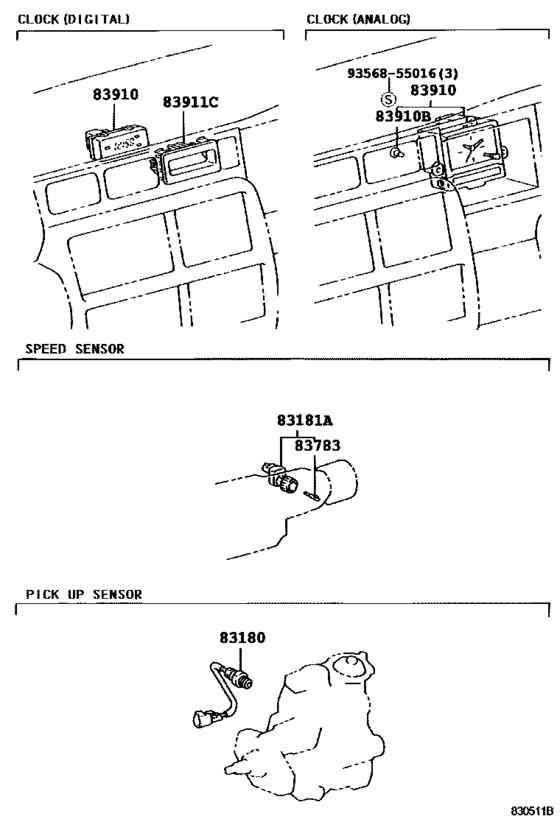

Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) 7
| # | OEM | Part name |
|---|---|---|
| 83180 | 83180-60080 | Detector Assy, Revolution |
| 83180 | 83180-37010 | Detector Assy, Revolution |
| 83181 | 83181-20040 | Sensor, Speedometer |
| 83783 | 83783-22010 | Key, Speedmeter Sensor |
| 83910 | 83910-30481 | Clock Assy |
| 83910 | 90072-02001 | Bulb, Combination Meter, No.1 |
| 9356855016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 83180-37010 | Detector Assy, Revolution | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 83180-60080 | Detector Assy, Revolution | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 83181-20040 | Sensor, Speedometer | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 83783-22010 | Key, Speedmeter Sensor | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 83910-30481 | Clock Assy | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 90072-02001 | Bulb, Combination Meter, No.1 | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
| 93568-55016 | Screw | Meter ([01.1996 - ] CLOCK&SENSOR (9601- )) |
