LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories
LXS12 ×

← Back to categories

4,091 items

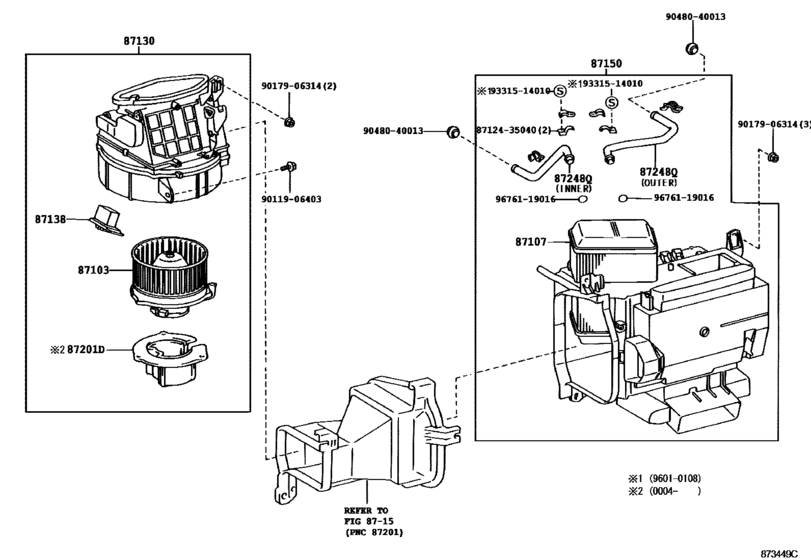

Heating & Air Conditioning - Heater Unit & Blower ([01.1996 - ] (9601- )) 19
#OEMPart name
87103 87103-43010 Motor Sub-Assy, Heater Blower, W/fan
87103 87103-43012 Motor Sub-Assy, Heater Blower, W/fan
87107 87107-43010 Unit Sub-Assy, Heater Radiator
87107 87107-43020 Unit Sub-Assy, Heater Radiator
87130 87130-43010 Blower Assy, Heater, Front
87130 87130-43020 Blower Assy, Heater, Front
87130 87130-43022 Blower Assy, Heater, Front
87138 87138-43010 Resistor, Heater Blower
87150 87150-43010 Radiator Assy, Heater
87150 87150-43011 Radiator Assy, Heater
87201 87201-43010 Duct Sub-Assy, Air
87248 87248-43010 Pipe, Front Heater Radiator Water
87248 87248-43020 Pipe, Front Heater Radiator Water
8712435040 87124-35040 Clamp, Heater, No.3
9011906403 90119-06403 BOLT W-WASHER
9017906314 90179-06314 NUT
9048040013 90480-40013 New Genuine Part
9331514010 93315-14010 SCREW
9676119016 96761-19016 RING
