LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories
LXS12 ×

← Back to categories

4,091 items

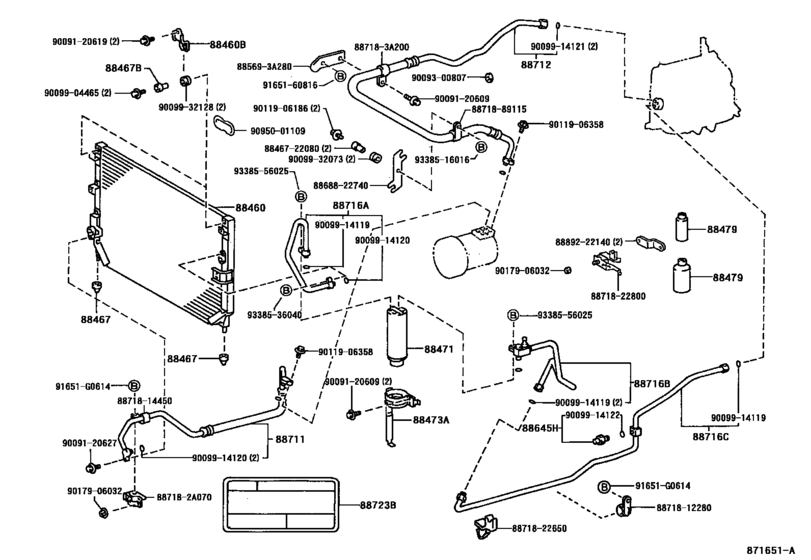

Heating & Air Conditioning - Cooler Piping ([01.1996 - 08.2001] (9601-0108)LXS1#) 52
#OEMPart name
88460 88460-43010 Condenser Assy, Cooler
88460 88688-43010 Bracket, Cooler Condenser, No.1
88467 88467-32020 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88471 88471-22030 Tank, Receiver Air Conditioner
88473 88473-43010 Holder, Receiver
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88711 88711-43020 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-43020 Hose, Cooler Refrigerant Suction, No.1
88716 88716-43030 Pipe, Cooler Refrigerant Liquid, A
88716 88716-43010 Pipe, Cooler Refrigerant Liquid, B
88716 88716-43050 Pipe, Cooler Refrigerant Liquid, C
88723 88723-20040 Label, Cooler Service Caution
91651 91651-G0614 BOLT,W/WASHER
91651 90119-06482 New Genuine Part
885693 88569-3A280 Clamp (for Cooler Relay)
887182 88718-2A070 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3A200 Pipe, Cooler Refrigerant Suction, No.2
8846722080 88467-22080 Cushion, Cooler Refrigerant Pipe Clamp
8868822740 88688-22740 Bracket, Cooler Diaphragm
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871822650 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
8871822800 88718-22800 Pipe, Cooler Refrigerant Suction, No.2
8871889115 88718-89115 Pipe, Cooler Refrigerant Suction, No.2
8889222140 88892-22140 Bracket, Cooler Evaporator Mounting
9009120609 90091-20609 BOLT
9009120619 90091-20619 BOLT
9009120627 90091-20627 New Genuine Part
9009300807 90093-00807 New Genuine Part
9009904465 90099-04465 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9009932073 90099-32073 Grommet
9009932128 90099-32128 Grommet
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011906358 90119-06358 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9095001109 90950-01109 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9338516016 93385-16016 New Genuine Part
9338536040 93385-36040 New Genuine Part
9338556025 93385-56025 New Genuine Part
