LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories
LXS12 ×

← Back to categories

4,091 items

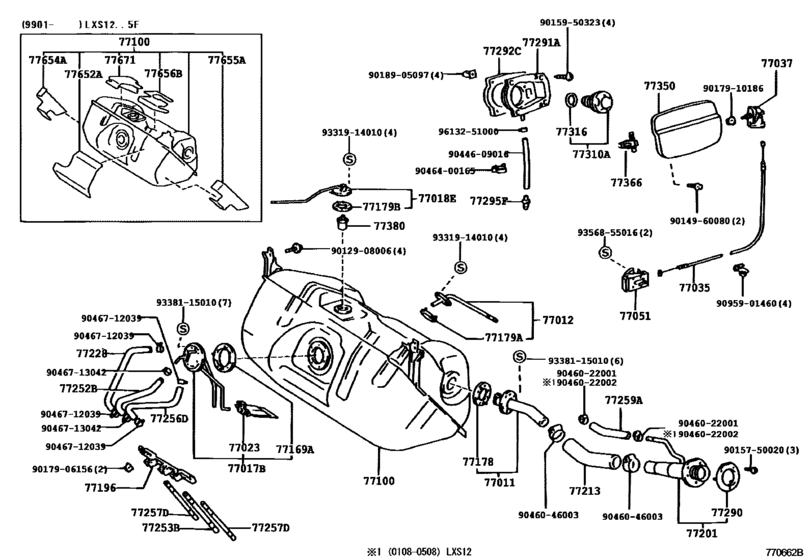

Fuel Tank & Tube ([01.1996 - ] FUEL TANK (9601- )LXS1#) 67
#OEMPart name
77011 77011-43010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-43010 Tube Sub-Assy, Fuel Tank Breather
77017 77017-43010 Tube Sub-Assy, Fuel Tank Vent
77018 77018-43010 Tube Sub-Assy, Fuel Tank Evaporation Vent
77023 77023-31020 Filter Sub-Assy, Fuel Suction Tube
77035 77035-43010 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-43011 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77051 77051-30060-C0 Lever Sub-Assy, Fuel Lid Open
77100 77001-43020 Tank Assy, Fuel
77100 77001-43022 Tank Assy, Fuel
77100 77001-43021 Tank Assy, Fuel
77169 77169-14010 Gasket, Fuel Pump Bracket
77178 77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77196 77196-43010 Clamp, Evaporation Vent Tube, No.1
77201 77201-43020 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-43060 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-43030 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-43010 Hose, Fuel Tank Sub Inlet
77228 77228-43010 Tube, Fuel Tank Evaporation Vent, No.2
77252 77252-43010 Hose, Fuel, No.1 (For Fuel Main No.2 Tube)
77253 77253-43010 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77256 77256-43010 Hose, Fuel, No.1 (For Fuel Return No.2 Tube)
77257 77257-43010 Hose, Fuel, No.1(For Fuel Return No.3 Tube)
77259 95311-13019 Hose, Fuel(For Breather Tube)
77290 77291-30050 Shield Assy, Fuel Tank Filler Pipe
77291 77291-30040 Shield, Fuel Tank Filler Pipe
77292 77292-30030 Shield, Fuel Tank Filler Pipe, No.2
77295 77295-43020 Grommet, Fuel Hose
77310 77310-12150 Cap Assy, Fuel Tank
77310 77310-30060 Cap Assy, Fuel Tank
77310 77310-32011 Cap Assy, Fuel Tank
77316 77316-12031 Gasket, Fuel Filler Lid Cylinder
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-43010 Lid Assy, Fuel Filler Opening
77366 77360-12030 Spring, Fuel Filler Opening Lid Hinge
77366 77360-43010 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77652 77652-43020 Cushion, Fuel Tank, No.2
77654 77654-43020 Cushion, Fuel Tank, No.4
77655 77655-43020 Cushion, Fuel Tank, No.5
77656 77656-43020 Cushion, Fuel Tank, No.6
77671 77671-43010 Cushion, Fuel Tank To Cover
9012908006 90129-08006 New Genuine Part
9014960080 90149-60080 New Genuine Part
9015750020 90157-50020 New Genuine Part
9015950323 90159-50323 SCREWWWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017910186 90179-10186 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9044609016 90446-09016 New Genuine Part
9046022001 90460-22001 CLAMP
9046022002 90460-22002 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400165 90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9095901460 90959-01460 Clamp (For Fuel Lid Lock Control Cable)
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9356855016 93568-55016 Screw
9613251000 96132-51000 Clip Or Clamp(For Ventilation Hose)
