LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories

← Back to categories

4,091 items

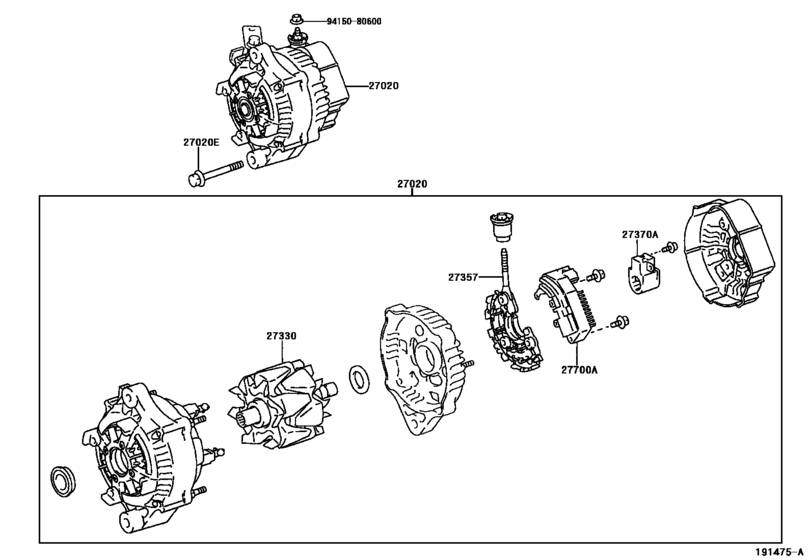

Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L) 12

#	OEM	Part name
27020	27060-54200	Alternator Assy
27020	27060-54400	Alternator Assy
27020	90105-10287	Bolt(For Alternator)
27330	27330-54860	Rotor Assy, Alternator
27330	27330-64190	Rotor Assy, Alternator
27330	27330-64130	Rotor Assy, Alternator
27357	27357-16380	Holder, Alternator, W/rectifier
27357	27357-55080	Holder, Alternator, W/rectifier
27370	27370-58320	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27700	27700-50030	Regulator Assy, Generator
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
27060-54200	Alternator Assy	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27060-54400	Alternator Assy	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27330-54860	Rotor Assy, Alternator	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27330-64130	Rotor Assy, Alternator	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27330-64190	Rotor Assy, Alternator	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27357-16380	Holder, Alternator, W/rectifier	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27357-55080	Holder, Alternator, W/rectifier	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27370-58320	Holder Assy, Alternator Brush	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27370-75060	Holder Assy, Alternator Brush	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
27700-50030	Regulator Assy, Generator	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
90105-10287	Bolt(For Alternator)	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)
94150-80600	NUT FLANGE	Alternator ([08.2001 - 07.2006] 12V 70A (0108-0607)5L)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 181
Collected: 2026-08-02
