Search › Model › LXS12

LXS12

Toyota CROWN-COMFORT · 1998 · 4,091 parts · 181 categories

4,091 items

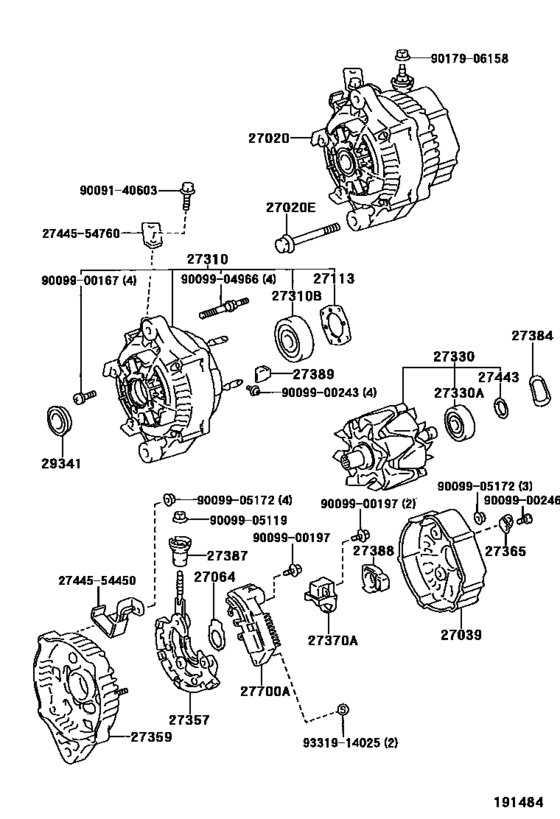

Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L) 44

#	OEM	Part name
27020	27060-54200	Alternator Assy
27020	27060-54400	Alternator Assy
27020	90105-10287	Bolt(For Alternator)
27039	27039-16380	Cover, Alternator Rear End
27039	27039-55080	Cover, Alternator Rear End
27039	27039-70470	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27113	27312-64130	Plate, Bearing Retainer, Alternator
27310	27310-54630	Frame Assy, Drive End, Alternator
27310	27310-54500	Frame Assy, Drive End, Alternator
27310	27310-54650	Frame Assy, Drive End, Alternator
27310	90099-10165	Bearing(For Alternator Drive End Frame)
27330	27330-54860	Rotor Assy, Alternator
27330	27330-64190	Rotor Assy, Alternator
27330	27330-64130	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-16380	Holder, Alternator, W/rectifier
27357	27357-55080	Holder, Alternator, W/rectifier
27359	27359-16182	Frame, Alternator Rectifier End
27359	27359-54420	Frame, Alternator Rectifier End
27365	27365-55080	Plate, Terminal
27370	27370-58320	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27384	27384-50030	Holder, Alternator Brush, A
27387	27387-42021	Insulator, Terminal
27387	27387-70171	Insulator, Terminal
27388	27388-42010	Cover, Alternator Brush
27389	27389-42010	Insulator, Terminal
27389	27389-63020	Insulator, Terminal
27443	27443-63020	Cover, Alternator Bearing
27700	27700-50030	Regulator Assy, Generator
29341	29341-64130	Seal, Alternator Oil
2744554450	27445-54450	New Genuine Part
2744554760	27445-54760	New Genuine Part
9009140603	90091-40603	New Genuine Part
9009900167	90099-00167	New Genuine Part
9009900197	90099-00197	Screw
9009900243	90099-00243	SCREW WWASHER
9009900246	90099-00246	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905172	90099-05172	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-16380	Cover, Alternator Rear End	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27039-55080	Cover, Alternator Rear End	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27039-70470	Cover, Alternator Rear End	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27060-54200	Alternator Assy	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27060-54400	Alternator Assy	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27064-42010	Seal, Alternator Plate	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27310-54500	Frame Assy, Drive End, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27310-54630	Frame Assy, Drive End, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27310-54650	Frame Assy, Drive End, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27312-64130	Plate, Bearing Retainer, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27330-54860	Rotor Assy, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27330-64130	Rotor Assy, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27330-64190	Rotor Assy, Alternator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27357-16380	Holder, Alternator, W/rectifier	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27357-55080	Holder, Alternator, W/rectifier	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27359-16182	Frame, Alternator Rectifier End	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27359-54420	Frame, Alternator Rectifier End	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27365-55080	Plate, Terminal	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27370-58320	Holder Assy, Alternator Brush	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27370-75060	Holder Assy, Alternator Brush	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27384-50030	Holder, Alternator Brush, A	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27387-42021	Insulator, Terminal	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27387-70171	Insulator, Terminal	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27388-42010	Cover, Alternator Brush	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27389-42010	Insulator, Terminal	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27389-63020	Insulator, Terminal	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27443-63020	Cover, Alternator Bearing	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27445-54450	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27445-54760	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
27700-50030	Regulator Assy, Generator	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
29341-64130	Seal, Alternator Oil	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90091-40603	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-00167	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-00197	Screw	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-00243	SCREW WWASHER	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-00246	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-05119	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-05172	New Genuine Part	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90099-10165	Bearing(For Alternator Drive End Frame)	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90105-10287	Bolt(For Alternator)	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
93319-14025	Screw W Washer	Alternator ([02.2001 - 08.2001] 12V 70A (0102-0108)5L)
