Search › Model › LXS10

LXS10

Toyota CROWN-COMFORT · 1996 · 3,886 parts · 169 categories

3,886 items

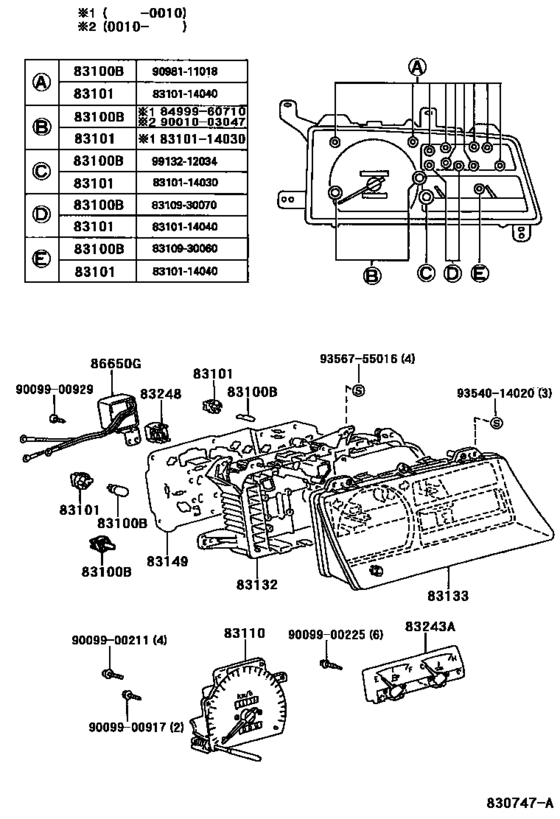

Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108)) 25

#	OEM	Part name
83100	83109-30060	Bulb, Combination Meter, No.1
83100	83109-30070	Bulb, Combination Meter, No.1
83100	83119-24070	Bulb, Combination Meter, No.1
83100	84999-60710	Bulb, Combination Meter, No.1
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83101	83101-14030	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14040	Socket, Indicator Lamp
83110	83110-3F131	Speedometer Assy
83132	83841-43110	Case, Combination Meter
83132	83841-43230	Case, Combination Meter
83133	83811-43110	Plate, Combination Meter, No.1
83149	83861-43110	Plate, Meter Circuit
83149	83861-43230	Plate, Meter Circuit
83243	83243-3A530	Gauge Sub-Assy, Fuel Receiver
83248	83248-20010	Chime, Speed Warning
86650	86650-30120	Buzzer Assy
9009900211	90099-00211	New Genuine Part
9009900225	90099-00225	New Genuine Part
9009900917	90099-00917	New Genuine Part
9009900929	90099-00929	New Genuine Part
9354014020	93540-14020	Screw
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83101-14030	Socket Sub-Assy, Combination Meter Bulb	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83101-14040	Socket, Indicator Lamp	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83109-30060	Bulb, Combination Meter, No.1	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83109-30070	Bulb, Combination Meter, No.1	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83110-3F131	Speedometer Assy	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83119-24070	Bulb, Combination Meter, No.1	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83243-3A530	Gauge Sub-Assy, Fuel Receiver	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83248-20010	Chime, Speed Warning	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83811-43110	Plate, Combination Meter, No.1	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83841-43110	Case, Combination Meter	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83841-43230	Case, Combination Meter	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83861-43110	Plate, Meter Circuit	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
83861-43230	Plate, Meter Circuit	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
84999-60710	Bulb, Combination Meter, No.1	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
86650-30120	Buzzer Assy	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
90099-00211	New Genuine Part	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
90099-00225	New Genuine Part	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
90099-00917	New Genuine Part	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
90099-00929	New Genuine Part	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
90981-11018	Bulb, Position Indicator Lamp	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
93540-14020	Screw	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
93567-55016	Screw	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
93568-55016	Screw	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))
99132-12034	Bulb, Position Indicator Lamp	Meter ([01.1996 - 08.2001] W/O(TACHOMETER) (9601-0108))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 169
Collected: 2026-08-02
