Search › Model › LXS10
LXS10

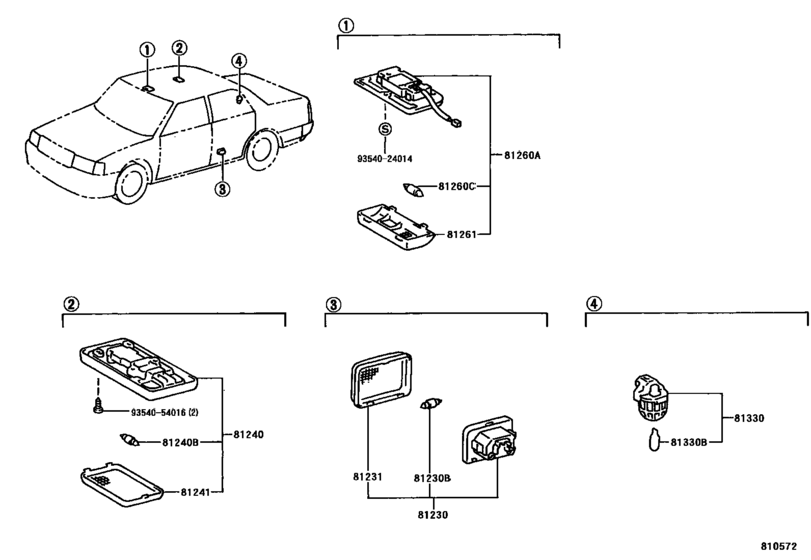

Interior Lamp ([01.1996 - ] (9601- )) 13
| # | OEM | Part name |
|---|---|---|
| 81230 | 81230-30130 | Lamp Assy, Courtesy |
| 81230 | 90981-14001 | Bulb(For Courtesy Lamp) |
| 81231 | 81231-30130 | Lens, Courtesy Lamp |
| 81240 | 81240-43010-B0 | Lamp Assy, Room, No.1 |
| 81240 | 90981-14004 | Bulb, Room Lamp, No.1 |
| 81241 | 81241-12020 | Lens, Room Lamp, No.1 |
| 81260 | 81260-43020-B0 | Lamp Assy, Map |
| 81260 | 90981-12020 | Bulb, Room Lamp, No.1 |
| 81261 | 81261-30120 | Lens And Cover, Map Lamp |
| 81330 | 81330-30090 | Lamp Assy, Luggage Compartment, No.1 |
| 81330 | 90981-11020 | Bulb (For Lower Back Finish Panel Emblem) |
| 9354024014 | 93540-24014 | New Genuine Part |
| 9354054016 | 93540-54016 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81230-30130 | Lamp Assy, Courtesy | Interior Lamp ([01.1996 - ] (9601- )) |
| 81231-30130 | Lens, Courtesy Lamp | Interior Lamp ([01.1996 - ] (9601- )) |
| 81240-43010-B0 | Lamp Assy, Room, No.1 | Interior Lamp ([01.1996 - ] (9601- )) |
| 81241-12020 | Lens, Room Lamp, No.1 | Interior Lamp ([01.1996 - ] (9601- )) |
| 81260-43020-B0 | Lamp Assy, Map | Interior Lamp ([01.1996 - ] (9601- )) |
| 81261-30120 | Lens And Cover, Map Lamp | Interior Lamp ([01.1996 - ] (9601- )) |
| 81330-30090 | Lamp Assy, Luggage Compartment, No.1 | Interior Lamp ([01.1996 - ] (9601- )) |
| 90981-11020 | Bulb (For Lower Back Finish Panel Emblem) | Interior Lamp ([01.1996 - ] (9601- )) |
| 90981-12020 | Bulb, Room Lamp, No.1 | Interior Lamp ([01.1996 - ] (9601- )) |
| 90981-14001 | Bulb(For Courtesy Lamp) | Interior Lamp ([01.1996 - ] (9601- )) |
| 90981-14004 | Bulb, Room Lamp, No.1 | Interior Lamp ([01.1996 - ] (9601- )) |
| 93540-24014 | New Genuine Part | Interior Lamp ([01.1996 - ] (9601- )) |
| 93540-54016 | SCREW | Interior Lamp ([01.1996 - ] (9601- )) |
