Search › Model › LXS10

LXS10

Toyota CROWN-COMFORT · 1996 · 3,886 parts · 169 categories
LXS10 ×

← Back to categories

3,886 items

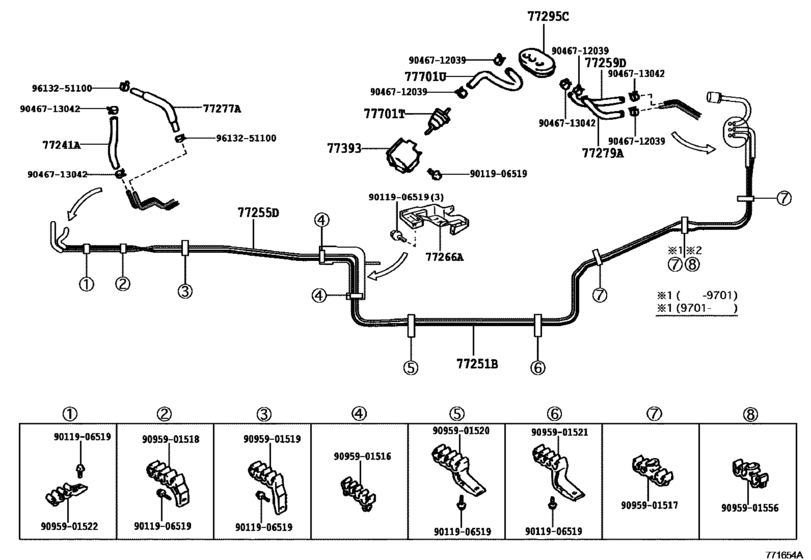

Fuel Tank & Tube ([01.1996 - ] FUEL TUBE (9601- )LXS1#) 26
#OEMPart name
77241 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 77251-43030 Tube, Fuel Main
77251 77251-43031 Tube, Fuel Main
77255 77255-43010 Tube, Fuel Return
77255 77255-43011 Tube, Fuel Return
77259 77259-43010 Hose, Fuel, No.1
77266 77266-43020 Protector, Fuel Tube, No.1
77277 90447-12100 Hose, Fuel, No.1(For Return Tube, No.1)
77279 77279-43010 Hose, Fuel, No.1 (For Return Tube, No.3)
77295 77295-43010 Grommet, Fuel Tube
77393 77393-22010 Protector, Check Valve
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 95333-06030 Hose, Fuel
77701 95338-06030 HOSE, FUEL
9011906519 90119-06519 New Genuine Part
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9095901516 90959-01516 Clamp, Fuel Tube, No.3
9095901517 90959-01517 Clamp, Fuel Tube, No.7
9095901518 90959-01518 Clamp, Fuel Tube, No.2
9095901519 90959-01519 Clamp, Fuel Tube, No.2
9095901520 90959-01520 Clamp, Fuel Tube, No.5
9095901521 90959-01521 Clamp, Fuel Tube, No.6
9095901522 90959-01522 Clamp, Fuel Tube, No.1
9095901556 90959-01556 New Genuine Part
