Search › Model › LXS10

LXS10

Toyota CROWN-COMFORT · 1996 · 3,886 parts · 169 categories

3,886 items

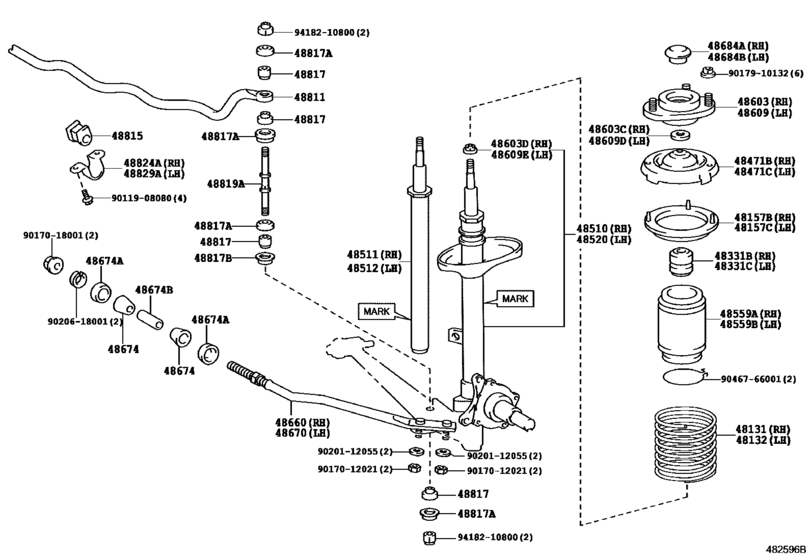

Front Spring & Shock Absorber ([01.1996 - ] (9601- )) 38

#	OEM	Part name
48131	48131-43030	Spring, Front Coil, Rh
48157	48157-22031	Insulator, Front Coil Spring, Upper
48331	48331-22040	Bumper, Front Spring, No.1
48471	48044-22070	Seat Sub- Assy, Front Spring, No.1
48510	48510-49035	Absorber Assy, Shock, Front Rh
48510	48510-49036	Absorber Assy, Shock, Front Rh
48510	48510-49037	Absorber Assy, Shock, Front Rh
48511	48511-43010	Absorber, Shock Front, Rh(For Cartridge Type)
48511	48511-43040	Absorber, Shock Front, Rh(For Cartridge Type)
48520	48520-49035	Absorber Assy, Shock, Front Lh
48520	48520-49036	Absorber Assy, Shock, Front Lh
48520	48520-49037	Absorber Assy, Shock, Front Lh
48559	48559-22010	Cover, Shock Absorber, Dust
48603	48609-22120	Support Sub-Assy, Front Suspension, Rh
48603	90303-22049	Seal, Dust(For Front Suspension Support)
48603	94182-11400	Nut(For Idler Arm Support)
48660	48660-43010	Bar Assy, Strut, Rh
48670	48670-43010	Bar Assy, Strut, Lh
48674	48674-43010	Cushion, Strut Bar
48674	90948-02030	Retainer, Cushion(For Strut Bar Cushion)
48674	90387-18129	Collar(For Strut Bar Cushion)
48684	48684-14020	Cover, Bearing Dust
48811	48811-43010	Bar, Stabilizer, Front
48815	48815-43010	Bush, Front Stabilizer Bar, No.1
48815	48815-43011	Bush, Front Stabilizer Bar, No.1
48817	48817-22020	Cushion, Front Stabilizer
48817	90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48819	48819-24010	Bolt(For Front Stabilizer)
48824	48824-43010	Bracket, Front Stabilizer, No.1 Rh
9011908080	90119-08080	BOLT
9017012021	90170-12021	NUT, HEXAGON
9017018001	90170-18001	NUT
9017910132	90179-10132	Nut
9020112055	90201-12055	New Genuine Part
9020618001	90206-18001	WASHER
9046766001	90467-66001	New Genuine Part
9418210800	94182-10800	Nut

OEM	Part name	Category
48044-22070	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48131-43030	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48157-22031	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48331-22040	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48510-49035	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48510-49036	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48510-49037	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48511-43010	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48511-43040	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48520-49035	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48520-49036	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48520-49037	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48559-22010	Cover, Shock Absorber, Dust	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48609-22120	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48660-43010	Bar Assy, Strut, Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48670-43010	Bar Assy, Strut, Lh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48674-43010	Cushion, Strut Bar	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48684-14020	Cover, Bearing Dust	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48811-43010	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48815-43010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48815-43011	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48817-22020	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48819-24010	Bolt(For Front Stabilizer)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
48824-43010	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90119-08080	BOLT	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90170-12021	NUT, HEXAGON	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90170-18001	NUT	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90179-10132	Nut	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90201-12055	New Genuine Part	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90206-18001	WASHER	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90387-18129	Collar(For Strut Bar Cushion)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90467-66001	New Genuine Part	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90948-02030	Retainer, Cushion(For Strut Bar Cushion)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
94182-10800	Nut	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([01.1996 - ] (9601- ))
