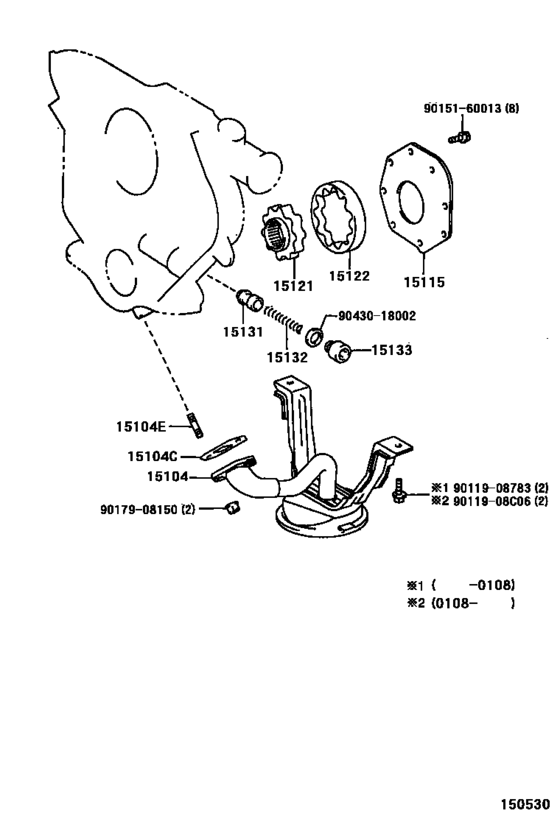

| 15104-54120 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15115-54022 |
Cover, Oil Pump |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15121-54020 |
Gear, Oil Pump Drive |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15122-54020 |
Gear, Oil Pump Driven |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15131-54010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15132-54010 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15133-54010 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15149-54012 |
Gasket(For Oil Strainer) |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 15149-54030 |
Gasket(For Oil Strainer) |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 90119-08783 |
BOLT WWASHER |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 90119-08C06 |
BOLT WWASHER |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 90151-60013 |
BOLT |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 90179-08150 |
NUT |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 90430-18002 |
Gasket |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
| 92122-40816 |
Bolt, Stud(For Oil Strainer) |
Engine Oil Pump ([01.1996 - ] (9601- )2L,5L) |
