LXH49

Toyota HIACE-REGIUS · 1997 · 4,661 parts · 249 categories

← Back to categories

4,661 items

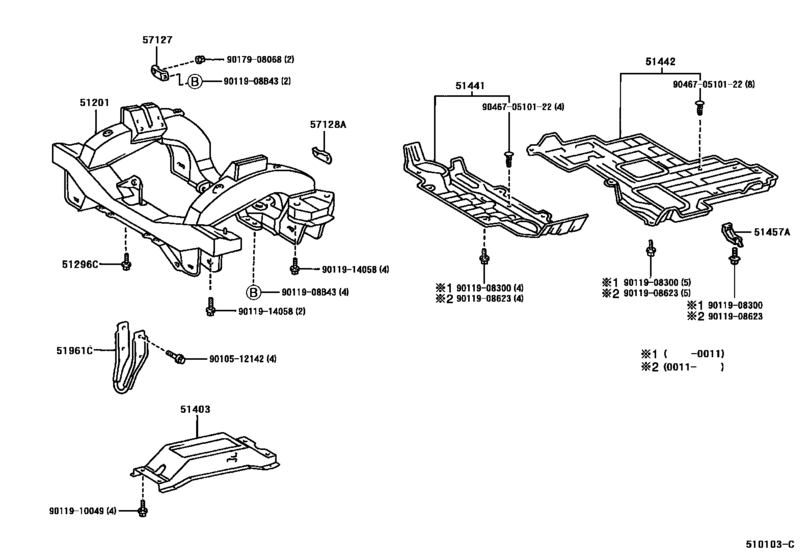

Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47) 18

#	OEM	Part name
51201	51210-26040	Crossmember Sub-Assy, Front Suspension
51296	51296-26010	Bolt, Front Suspension Member Mounting
51403	51403-26130	Bracket Sub-Assy, Engine Rear Mounting
51441	51405-26090	Cover, Engine Under, No.1
51442	51406-26080	Cover, Engine Under, No.2
51442	51406-26081	Cover, Engine Under, No.2
51457	51457-26030	Bracket, Engine Under Cover, No.3
51961	51961-26130	Hook, Front
57127	57127-26050	Plate, Front Suspension Member Mounting, Rh
57128	57128-26040	Plate, Front Suspension Member Mounting, Lh
9011908	90119-08B43	New Genuine Part
9010512142	90105-12142	Bolt(For Front Suspension Lower Arm)
9011908300	90119-08300	New Genuine Part
9011908623	90119-08623	New Genuine Part
9011910049	90119-10049	Bolt, Center Support Bearing Bracket
9011914058	90119-14058	New Genuine Part
9017908068	90179-08068	NUT
904670510122	90467-05101-22	Clip(For Luggage Compartment Trim Front Cover)

OEM	Part name	Category
51210-26040	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51296-26010	Bolt, Front Suspension Member Mounting	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51403-26130	Bracket Sub-Assy, Engine Rear Mounting	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51405-26090	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51406-26080	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51406-26081	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51457-26030	Bracket, Engine Under Cover, No.3	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
51961-26130	Hook, Front	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
57127-26050	Plate, Front Suspension Member Mounting, Rh	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
57128-26040	Plate, Front Suspension Member Mounting, Lh	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90105-12142	Bolt(For Front Suspension Lower Arm)	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-08300	New Genuine Part	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-08623	New Genuine Part	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-08B43	New Genuine Part	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-10049	Bolt, Center Support Bearing Bracket	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-14058	New Genuine Part	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90179-08068	NUT	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90467-05101-22	Clip(For Luggage Compartment Trim Front Cover)	Suspension Crossmember & Under Cover ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
