Search › Model › LXH28
LXH28

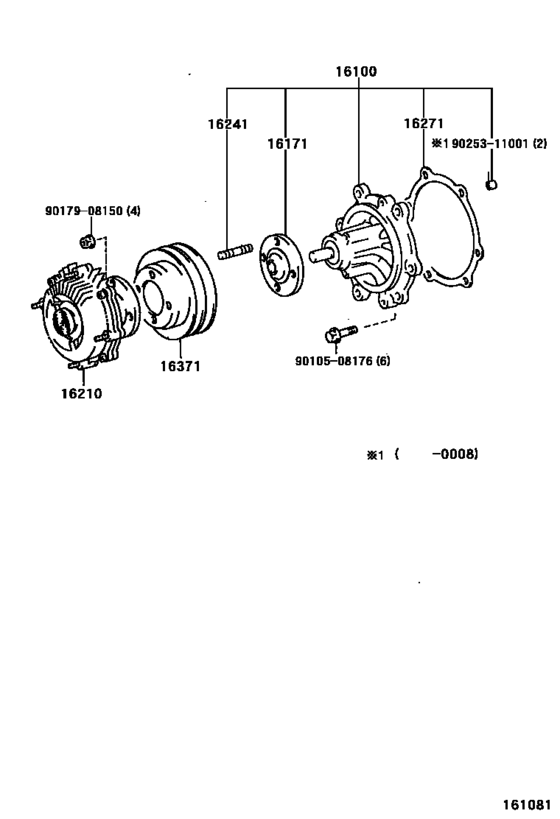

Water Pump ([08.1995 - ] (9508- )2L#) 12
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-59255 | Pump Assy, Engine Water |
| 16100 | 16100-59257 | Pump Assy, Engine Water |
| 16171 | 16171-75020 | Seat, Water Pump Pulley |
| 16210 | 16210-54210 | Coupling Assy, Fluid |
| 16210 | 16210-54220 | Coupling Assy, Fluid |
| 16241 | 92122-60818 | Bolt, Stud(For Water Pump Pulley Seat) |
| 16271 | 16271-54020 | Gasket, Water Pump |
| 16271 | 16271-54030 | Gasket, Water Pump |
| 16371 | 16371-54030 | Pulley, Fan |
| 9010508176 | 90105-08176 | BOLT |
| 9017908150 | 90179-08150 | NUT |
| 9025311001 | 90253-11001 | Pin, Ring(For Camshaft Bearing Cap Setting) |
| OEM | Part name | Category |
|---|---|---|
| 16100-59255 | Pump Assy, Engine Water | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16100-59257 | Pump Assy, Engine Water | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16171-75020 | Seat, Water Pump Pulley | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16210-54210 | Coupling Assy, Fluid | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16210-54220 | Coupling Assy, Fluid | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16271-54020 | Gasket, Water Pump | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16271-54030 | Gasket, Water Pump | Water Pump ([08.1995 - ] (9508- )2L#) |
| 16371-54030 | Pulley, Fan | Water Pump ([08.1995 - ] (9508- )2L#) |
| 90105-08176 | BOLT | Water Pump ([08.1995 - ] (9508- )2L#) |
| 90179-08150 | NUT | Water Pump ([08.1995 - ] (9508- )2L#) |
| 90253-11001 | Pin, Ring(For Camshaft Bearing Cap Setting) | Water Pump ([08.1995 - ] (9508- )2L#) |
| 92122-60818 | Bolt, Stud(For Water Pump Pulley Seat) | Water Pump ([08.1995 - ] (9508- )2L#) |
