LX80

Toyota CHASER · 1988 · 5,228 parts · 197 categories
LX80 ×

← Back to categories

5,228 items

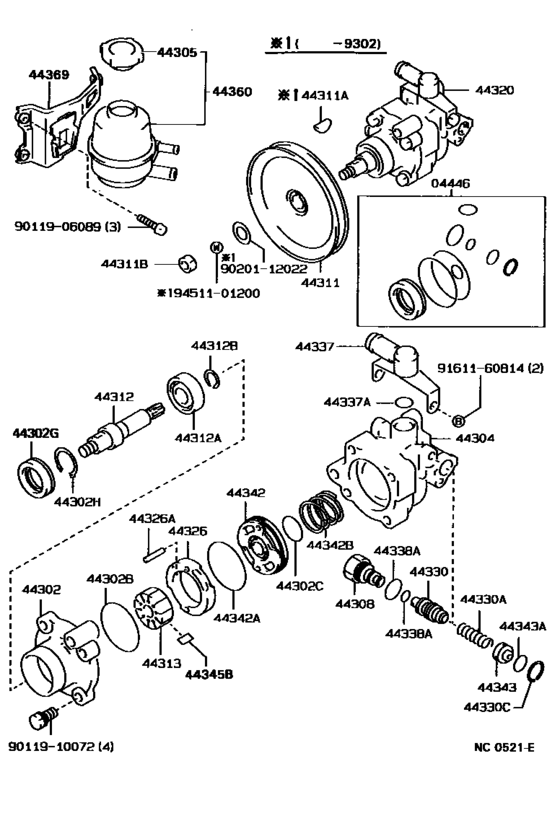

Vane Pump & Reservoir (Power Steering) ([08.1988 - ] (8808- )LX80) 78
#OEMPart name
4446 04446-30060 Gasket Kit, Power Steering Pump
44302 44302-22020 Housing Sub-Assy, Vane Pump, Front
44302 90301-60001 Ring, O, No.1(For Vane Pump Housing)
44302 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
44302 90311-24006 Seal, Oil, No.2(For Vane Pump Housing)
44302 90311-24009 Seal, Oil, No.2(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)
44304 44304-30051 Housing Sub-Assy, Vane Pump, Rear
44305 44305-22030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22050 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-32030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-28051 Cap Sub-Assy, Vane Pump Oil Reservoir
44308 44308-14041 Union Sub-Assy, Pressure Port
44311 44311-22070 Pulley, Vane Pump
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44311 90170-12011 Nut(For Vane Pump Pulley)
44312 44312-12010 Shaft, Vane Pump
44312 90363-17004 Bearing(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-12010 Rotor, Vane Pump
44313 44313-22040 Rotor, Vane Pump
44313 44313-12020 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-12030 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-12040 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-12050 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44320 44320-22400 Pump Assy, Vane
44326 44325-12010 Ring, Cam(For Vane Pump)
44326 44325-12020 Ring, Cam(For Vane Pump)
44326 44325-12030 Ring, Cam(For Vane Pump)
44326 44325-12040 Ring, Cam(For Vane Pump)
44326 44325-12050 Ring, Cam(For Vane Pump)
44326 90250-05008 Pin, Straight(For Vane Pump Cam Ring)
44330 44330-14010 Valve Assy, Flow Control
44330 44330-35191 Valve Assy, Flow Control
44330 44330-14020 Valve Assy, Flow Control
44330 44330-35201 Valve Assy, Flow Control
44330 44330-14030 Valve Assy, Flow Control
44330 44330-35211 Valve Assy, Flow Control
44330 44330-14040 Valve Assy, Flow Control
44330 44330-35221 Valve Assy, Flow Control
44330 44330-14050 Valve Assy, Flow Control
44330 44330-35231 Valve Assy, Flow Control
44330 44330-14060 Valve Assy, Flow Control
44330 44330-35241 Valve Assy, Flow Control
44330 44330-20010 Valve Assy, Flow Control
44330 44330-20020 Valve Assy, Flow Control
44330 44330-20030 Valve Assy, Flow Control
44330 44330-20040 Valve Assy, Flow Control
44330 44330-20050 Valve Assy, Flow Control
44330 44330-20060 Valve Assy, Flow Control
44330 90501-12103 Spring, Compression(For Flow Control Valve)
44330 96151-01700 Ring, Snap(For Flow Control Valve)
44337 44337-30010 Union, Power Steering Suction Port
44337 96711-19013 Ring, O(For Power Steering Suction Port)
44338 90301-22001 Ring, O(For Pressure Port Union)
44338 96711-19014 O-Ring
44342 44341-12010 Plate, Vane Pump Side, Front
44342 90301-53002 Ring, O(For Vane Pump Side Plate Rear)
44342 90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)
44343 44343-12040 Seat, Flow Control Spring
44345 44345-12010 Plate, Vane Pump
44345 44345-12020 Plate, Vane Pump
44345 44345-12030 Plate, Vane Pump
44345 44345-12040 Plate, Vane Pump
44345 44345-12050 Plate, Vane Pump
44360 44360-14081 Reservoir Assy, Vane Pump Oil
44369 44390-22010 Bracket, Oil Reservoir, No.1
44369 44390-22011 Bracket, Oil Reservoir, No.1
9011906089 90119-06089 New Genuine Part
9011910072 90119-10072 New Genuine Part
9020112022 90201-12022 New Genuine Part
9161160814 91611-60814 Bolt
9451101200 94511-01200 WASHER
