Search › Model › LX80

LX80

Toyota CHASER · 1988 · 5,228 parts · 197 categories

5,228 items

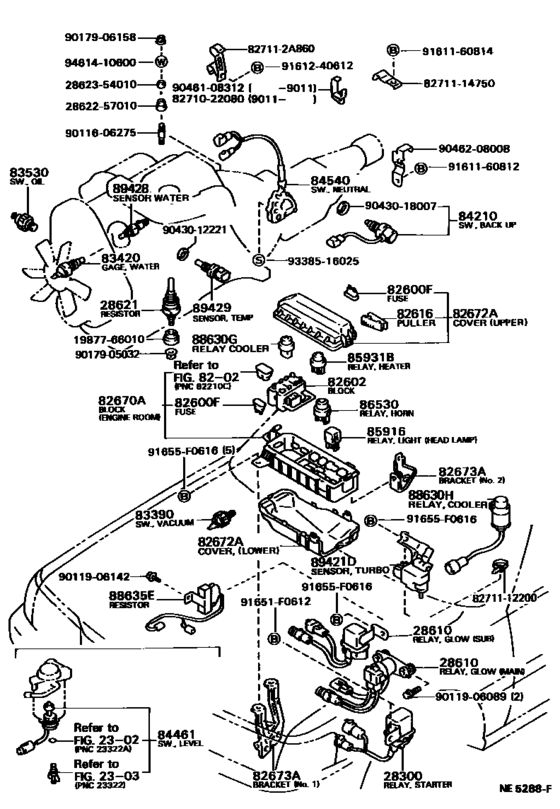

Switch & Relay & Computer ([08.1988 - ] (8808- )LX80) 69

#	OEM	Part name
28300	28300-54100	Relay Assy, Starter
28300	28300-64030	Relay Assy, Starter
28610	28610-54290	Relay Assy, Glow Plug
28610	28610-54310	Relay Assy, Glow Plug
28621	28621-54080	Resistor, Glow Plug
82600	90982-09002	Fusible Link
82600	90982-09003	Fusible Link
82600	90982-09004	Fusible Link
82600	90982-09005	Fuse, Fuse Block
82602	82602-22260	Block Sub-Assy, Relay
82616	82616-12020	Puller, Fuse
82670	82670-22020	Block Assy, Junction, No.1
82670	82670-22060	Block Assy, Junction, No.1
82670	82670-22090	Block Assy, Junction, No.1
82670	82671-22030	Block Assy, Junction, No.1
82670	82671-22031	Block Assy, Junction, No.1
82672	82672-22070	Cover, Junction Block
82672	82672-22110	Cover, Junction Block
82672	82672-22111	Cover, Junction Block
82673	82673-22010	Bracket, Junction Block
82673	82673-22060	Bracket, Junction Block
83390	83390-30020	Switch Assy, Vacuum Warning
83420	83420-20020	Gage Assy, Water Temperature Sender
83530	83530-30060	Switch Assy, Oil Pressure (For Engine)
83530	83530-60030	Switch Assy, Oil Pressure (For Engine)
84210	84210-30060	Switch Assy, Back-Up Lamp
84461	84461-35030	Switch, Level Warning
84540	84540-14130	Switch Assy, Neutral Start
84540	84540-22171	Switch Assy, Neutral Start
84540	84540-14131	Switch Assy, Neutral Start
85916	90987-02002	Relay, Ignition, No.1
85916	90987-02004	Relay Assy, Starter
85916	90987-02006	Relay
88630	88630-22100	Relay Assy, Cooler
89421	89420-22100	Sensor, Turbo Pressure
89421	89420-22180	Sensor, Turbo Pressure
89428	88790-22060	Thermo Switch Assy
89429	89422-20010	Sensor, Water Temperature (For E.f.i.)
91651	91651-F0612	New Genuine Part
91651	91651-G0612	New Genuine Part
91655	91655-F0616	New Genuine Part
91655	90119-06482	New Genuine Part
827112	82711-2A860	Wire, Fuse To Fuse(for Combustion Heater)
1987766010	19877-66010	Insulator Sub-Assy, Glow Plug, No.1
2862257010	28622-57010	Insulator, Glow Plug Resistor, No.1
2862354010	28623-54010	Insulator, Glow Plug Resistor, No.2
8271022080	82710-22080	Harness Assy, Oil Heater
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8271114750	82711-14750	Wire, Fuse To Fuse(for Combustion Heater)
9011606275	90116-06275	Bolt, Stud(For Injection Pipe Clamp)
9011606275	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
9011906089	90119-06089	New Genuine Part
9011906142	90119-06142	Bolt A/C
9017905032	90179-05032	NUT
9017905032	90179-05011	NUT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9043012221	90430-12221	Gasket
9043018007	90430-18007	Gasket(For Water Hole)
9043018007	90430-18008	Gasket
9046108312	90461-08312	New Genuine Part
9046208008	90462-08008	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160814	91611-60814	Bolt
9161240612	91612-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161240612	91611-G0612	Bolt
9338516025	93385-16025	New Genuine Part
9461410600	94614-10600	Washer (For Primary Regulator Valve)
9461410600	94613-10601	Washer (For Primary Regulator Valve)

OEM	Part name	Category
19877-66010	Insulator Sub-Assy, Glow Plug, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28300-54100	Relay Assy, Starter	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28300-64030	Relay Assy, Starter	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28610-54290	Relay Assy, Glow Plug	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28610-54310	Relay Assy, Glow Plug	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28621-54080	Resistor, Glow Plug	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28622-57010	Insulator, Glow Plug Resistor, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
28623-54010	Insulator, Glow Plug Resistor, No.2	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82602-22260	Block Sub-Assy, Relay	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82616-12020	Puller, Fuse	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82670-22020	Block Assy, Junction, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82670-22060	Block Assy, Junction, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82670-22090	Block Assy, Junction, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82671-22030	Block Assy, Junction, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82671-22031	Block Assy, Junction, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82672-22070	Cover, Junction Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82672-22110	Cover, Junction Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82672-22111	Cover, Junction Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82673-22010	Bracket, Junction Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82673-22060	Bracket, Junction Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82710-22080	Harness Assy, Oil Heater	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82711-14750	Wire, Fuse To Fuse(for Combustion Heater)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
82711-2A860	Wire, Fuse To Fuse(for Combustion Heater)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
83390-30020	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
83420-20020	Gage Assy, Water Temperature Sender	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
83530-30060	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
83530-60030	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
84210-30060	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
84461-35030	Switch, Level Warning	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
84540-14130	Switch Assy, Neutral Start	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
84540-14131	Switch Assy, Neutral Start	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
84540-22171	Switch Assy, Neutral Start	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
88630-22100	Relay Assy, Cooler	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
88790-22060	Thermo Switch Assy	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
89420-22100	Sensor, Turbo Pressure	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
89420-22180	Sensor, Turbo Pressure	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
89422-20010	Sensor, Water Temperature (For E.f.i.)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90116-06275	Bolt, Stud(For Injection Pipe Clamp)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90119-06089	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90119-06142	Bolt A/C	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90119-06482	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90179-05011	NUT	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90179-05032	NUT	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90430-12221	Gasket	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90430-18007	Gasket(For Water Hole)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90430-18008	Gasket	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90461-08312	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90462-08008	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90982-09002	Fusible Link	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90982-09003	Fusible Link	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90982-09004	Fusible Link	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90987-02002	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90987-02004	Relay Assy, Starter	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
90987-02006	Relay	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91611-60814	Bolt	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91611-B0812	Bolt	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91611-G0612	Bolt	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91612-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91651-F0612	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91651-G0612	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
91655-F0616	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
93385-16025	New Genuine Part	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
94613-10601	Washer (For Primary Regulator Valve)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
94614-10600	Washer (For Primary Regulator Valve)	Switch & Relay & Computer ([08.1988 - ] (8808- )LX80)
