Search › Model › LX80

LX80

Toyota CHASER · 1988 · 5,228 parts · 197 categories

5,228 items

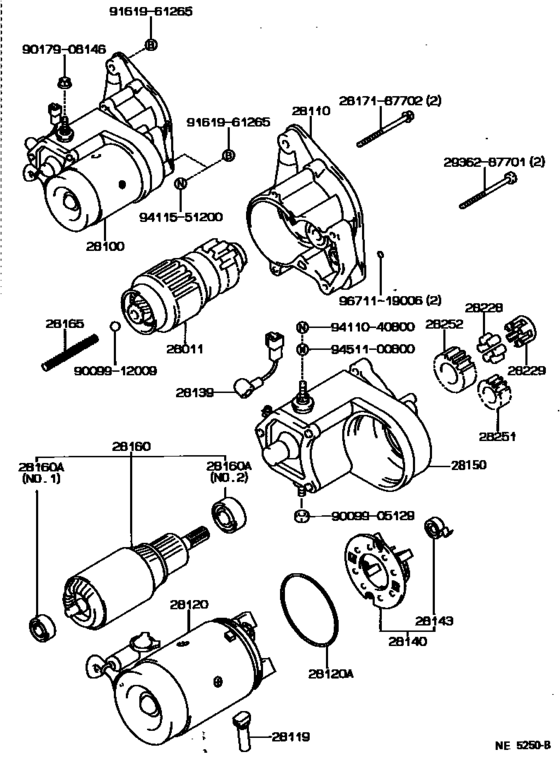

Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F) 49

#	OEM	Part name
28011	28011-54010	Clutch Sub-Assy, Starter
28011	28011-54070	Clutch Sub-Assy, Starter
28100	28100-54180	Starter Assy
28100	28100-54190	Starter Assy
28100	28100-54210	Starter Assy
28110	28115-54011	Housing Assy, Starter Drive
28110	28115-54070	Housing Assy, Starter Drive
28119	28199-77090	Cover, Starter End Frame
28120	28120-54070	Yoke Assy, Starter
28120	28120-56081	Yoke Assy, Starter
28120	90099-14058	Rubber(For Starter Yoke)
28139	28139-54180	Wire, Lead, No.1(For Starter)
28139	28139-54190	Wire, Lead, No.1(For Starter)
28139	28139-56160	Wire, Lead, No.1(For Starter)
28140	28140-54070	Holder Assy, Starter Brush
28140	28140-77090	Holder Assy, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-54070	Switch Assy, Magnet Starter
28150	28150-54110	Switch Assy, Magnet Starter
28150	28150-54140	Switch Assy, Magnet Starter
28150	28150-54430	Switch Assy, Magnet Starter
28160	28160-54070	Armature Assy, Starter
28160	28160-54071	Armature Assy, Starter
28160	28160-54140	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10107	Bearing, Starter Armature
28160	90099-10119	Bearing, Starter Armature
28160	90099-10131	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-77090	Spring, Starter Magnet Switch Return
28228	28228-26040	Roller, Starter Idle Gear Clutch
28228	28228-56080	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-56080	Retainer, Starter Idle Gear
28251	28251-54070	Plate, Lead, Switch Connecting
28252	28254-54070	Pinion, Starter Drive
28252	28254-77090	Pinion, Starter Drive
2817187702	28171-87702	Bolt, Starter
2936287701	29362-87701	Bolt, Starter
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161961265	91619-61265	Bolt(For Transaxle & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9451100800	94511-00800	WASHERSPRING
9671119006	96711-19006	Packing(For Radiator Drain Cock)

OEM	Part name	Category
28011-54010	Clutch Sub-Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28011-54070	Clutch Sub-Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28100-54180	Starter Assy	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28100-54190	Starter Assy	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28100-54210	Starter Assy	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28115-54011	Housing Assy, Starter Drive	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28115-54070	Housing Assy, Starter Drive	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28120-54070	Yoke Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28120-56081	Yoke Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28139-54180	Wire, Lead, No.1(For Starter)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28139-54190	Wire, Lead, No.1(For Starter)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28139-56160	Wire, Lead, No.1(For Starter)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28140-54070	Holder Assy, Starter Brush	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28140-77090	Holder Assy, Starter Brush	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28150-54070	Switch Assy, Magnet Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28150-54110	Switch Assy, Magnet Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28150-54140	Switch Assy, Magnet Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28150-54430	Switch Assy, Magnet Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28160-54070	Armature Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28160-54071	Armature Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28160-54140	Armature Assy, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28165-77090	Spring, Starter Magnet Switch Return	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28171-87702	Bolt, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28199-77090	Cover, Starter End Frame	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28228-56080	Roller, Starter Idle Gear Clutch	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28229-56080	Retainer, Starter Idle Gear	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28251-54070	Plate, Lead, Switch Connecting	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28253-54070	Bearing, Starter Armature	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28254-54070	Pinion, Starter Drive	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
28254-77090	Pinion, Starter Drive	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
29362-87701	Bolt, Starter	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-10107	Bearing, Starter Armature	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-10119	Bearing, Starter Armature	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-10131	Bearing, Starter Armature	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-12009	Ball, Starter Clutch	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-14058	Rubber(For Starter Yoke)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90099-17115	Spring, Starter Brush	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90179-08146	Nut	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
90179-08204	Nut	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
91619-61265	Bolt(For Transaxle & Engine Setting)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
94110-40800	Nut(For Steering Damper)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
94511-00800	WASHERSPRING	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)
96711-19006	Packing(For Radiator Drain Cock)	Starter ([08.1988 - ] 12V 2.0KW (8808- )2L#..5F)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 197
Collected: 2026-08-02
