LX80

Toyota CHASER · 1988 · 5,228 parts · 197 categories
LX80 ×

← Back to categories

5,228 items

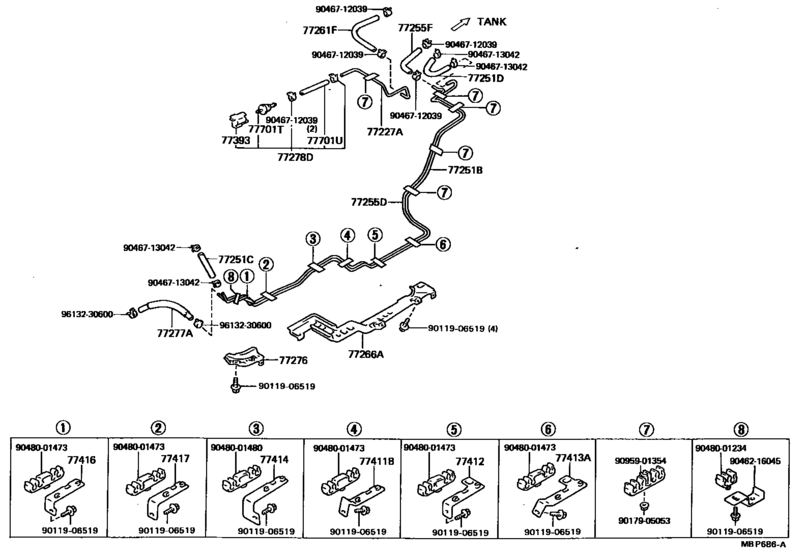

Fuel Tank & Tube ([08.1988 - 10.1992] (8808-9210)LX80) 36
#OEMPart name
77227 77227-22070 Tube, Fuel Tank Evaporation Vent
77251 77251-22430 Tube, Fuel Main
77251 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 95333-08020 Hose, Lpg Injector
77251 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77255 77255-22340 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77266 77266-22070 Protector, Fuel Tube, No.1
77276 77276-22070 Protector, Fuel Hose
77277 90447-12100 Hose, Fuel, No.1(For Return Tube, No.1)
77278 77278-22020 Valve, Check W/bracket
77393 77393-22010 Protector, Check Valve
77411 77411-22010 Support, Fuel Tube Grommet, No.1
77412 77412-22010 Support, Fuel Tube Grommet, No.2
77413 77413-22010 Support, Fuel Tube Grommet, No.3
77414 77414-22010 Support, Fuel Tube Grommet, No.4
77416 77416-22010 Support, Fuel Tube Grommet, No.6
77417 77417-22010 Support, Fuel Tube Grommet, No.7
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 95333-06010 Hose, Fuel
9011906519 90119-06519 New Genuine Part
9017905053 90179-05053 New Genuine Part
9046216045 90462-16045 New Genuine Part
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9048001234 90480-01234 New Genuine Part
9048001473 90480-01473 New Genuine Part
9048001480 90480-01480 New Genuine Part
9095901354 90959-01354 New Genuine Part
9095901354 90959-01355 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
