Search › Model › LX76

LX76

Toyota MARK-2 · 1984 · 6,474 parts · 345 categories

6,474 items

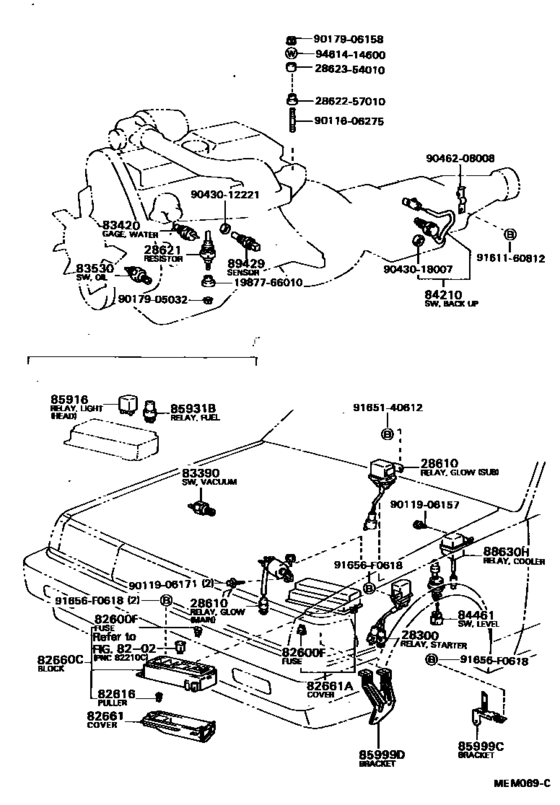

Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76) 55

#	OEM	Part name
28300	28300-54100	Relay Assy, Starter
28300	28300-54110	Relay Assy, Starter
28300	28300-64030	Relay Assy, Starter
28610	28610-54290	Relay Assy, Glow Plug
28610	28610-64080	Relay Assy, Glow Plug
28610	28610-64130	Relay Assy, Glow Plug
28621	28621-54080	Resistor, Glow Plug
82600	90982-09002	Fusible Link
82600	90982-09003	Fusible Link
82600	90982-09004	Fusible Link
82600	90982-09005	Fuse, Fuse Block
82616	82616-12010	Lever, Fuse
82660	82660-23020	Block Assy, Relay
82660	82660-91602	Block Assy, Relay
82661	82661-22121	Cover, Relay Block, No.1
82661	82661-23040	Cover, Relay Block, No.2
82661	82661-91603	Cover, Relay Block, No.2
83390	83390-30020	Switch Assy, Vacuum Warning
83420	83420-16040	Gage Assy, Water Temperature Sender
83420	83420-20020	Gage Assy, Water Temperature Sender
83530	83530-30060	Switch Assy, Oil Pressure (For Engine)
83530	83530-60030	Switch Assy, Oil Pressure (For Engine)
84210	84210-30060	Switch Assy, Back-Up Lamp
84461	84461-30080	Switch, Level Warning
84461	84461-35030	Switch, Level Warning
85916	90987-02002	Relay, Ignition, No.1
85916	90987-02004	Relay Assy, Starter
85916	90987-02006	Relay
85999	85999-22230	Bracket, Relay, No.3
85999	85999-22300	Bracket, Relay, No.3
88630	88630-14020	Relay Assy, Cooler
89429	89422-20010	Sensor, Water Temperature (For E.f.i.)
89429	89422-30020	Sensor, Water Temperature (For E.f.i.)
89429	89422-12010	Sensor, Water Temperature (For E.f.i.)
91656	91656-F0618	New Genuine Part
91656	90119-06482	New Genuine Part
1987766010	19877-66010	Insulator Sub-Assy, Glow Plug, No.1
2862257010	28622-57010	Insulator, Glow Plug Resistor, No.1
2862354010	28623-54010	Insulator, Glow Plug Resistor, No.2
9011606275	90116-06275	Bolt, Stud(For Injection Pipe Clamp)
9011606275	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
9011906157	90119-06157	Bolt
9011906171	90119-06171	BOLT
9017905032	90179-05032	NUT
9017905032	90179-05011	NUT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9043012221	90430-12221	Gasket
9043018007	90430-18007	Gasket(For Water Hole)
9043018007	90430-18008	Gasket
9046208008	90462-08008	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9461414600	94614-14600	New Genuine Part

OEM	Part name	Category
19877-66010	Insulator Sub-Assy, Glow Plug, No.1	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28300-54100	Relay Assy, Starter	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28300-54110	Relay Assy, Starter	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28300-64030	Relay Assy, Starter	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28610-54290	Relay Assy, Glow Plug	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28610-64080	Relay Assy, Glow Plug	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28610-64130	Relay Assy, Glow Plug	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28621-54080	Resistor, Glow Plug	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28622-57010	Insulator, Glow Plug Resistor, No.1	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
28623-54010	Insulator, Glow Plug Resistor, No.2	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82616-12010	Lever, Fuse	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82660-23020	Block Assy, Relay	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82660-91602	Block Assy, Relay	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82661-22121	Cover, Relay Block, No.1	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82661-23040	Cover, Relay Block, No.2	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
82661-91603	Cover, Relay Block, No.2	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
83390-30020	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
83420-16040	Gage Assy, Water Temperature Sender	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
83420-20020	Gage Assy, Water Temperature Sender	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
83530-30060	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
83530-60030	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
84210-30060	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
84461-30080	Switch, Level Warning	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
84461-35030	Switch, Level Warning	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
85999-22230	Bracket, Relay, No.3	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
85999-22300	Bracket, Relay, No.3	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
88630-14020	Relay Assy, Cooler	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
89422-12010	Sensor, Water Temperature (For E.f.i.)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
89422-20010	Sensor, Water Temperature (For E.f.i.)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
89422-30020	Sensor, Water Temperature (For E.f.i.)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90080-11225	New Genuine Part	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90116-06275	Bolt, Stud(For Injection Pipe Clamp)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90119-06157	Bolt	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90119-06171	BOLT	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90119-06482	New Genuine Part	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90179-05011	NUT	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90179-05032	NUT	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90430-12221	Gasket	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90430-18007	Gasket(For Water Hole)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90430-18008	Gasket	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90462-08008	New Genuine Part	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90982-09002	Fusible Link	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90982-09003	Fusible Link	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90982-09004	Fusible Link	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90987-02002	Relay, Ignition, No.1	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90987-02004	Relay Assy, Starter	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
90987-02006	Relay	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
91611-B0812	Bolt	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
91651-40612	BOLT	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
91656-F0618	New Genuine Part	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)
94614-14600	New Genuine Part	Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 345
Collected: 2026-08-04
