LX71

Toyota CRESSIDA-CRESSIDA-WAGON · 1984 · 4,944 parts · 186 categories
LX71 ×

← Back to categories

4,944 items

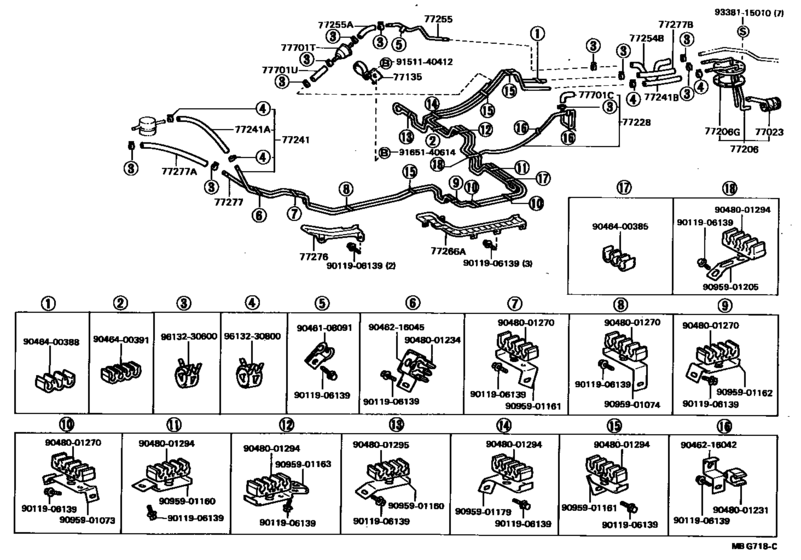

Fuel Tank & Tube ([08.1984 - 08.1986] (8408-8608)LX71) 49
#OEMPart name
77023 77023-32010 Filter Sub-Assy, Fuel Suction Tube
77135 77135-22040 Bracket, Check Valve
77206 77017-22160 Tube Sub-Assy, Fuel Tank Suction
77206 77169-14010 Gasket, Fuel Pump Bracket
77228 77027-22010 Tube, Fuel Tank Evaporation Vent, No.2
77241 77205-22140 Tube, Fuel Main, No.1
77241 95332-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 90445-14134 Hose, Fuel, No.2 (For Main Tube, No.1)
77254 77259-22040 Hose, Fuel, No.2 (For Emission Tube, No.1)
77255 77227-22060 Tube, Fuel Emission, No.2
77255 95332-06006 Hose, Fuel Tank Evaporation Vent
77255 95333-06010 Hose, Fuel
77255 95332-06010 Hose, Fuel Pipe, No.1
77266 77266-22040 Protector, Fuel Tube, No.1
77276 77276-22040 Protector, Fuel Hose
77277 77255-22240 Tube, Fuel Return, No.1
77277 90447-12054 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95332-06030 Hose(For Carburetor)
77277 95333-06030 Hose, Fuel
77701 90917-10020 Valve, Check (For Main Fuel Tank)
9011906139 90119-06139 New Genuine Part
9011906139 91651-40614 Bolt
9046108091 90461-08091 New Genuine Part
9046216042 90462-16042 New Genuine Part
9046216042 90462-16064 New Genuine Part
9046216045 90462-16045 New Genuine Part
9046400385 90464-00385 New Genuine Part
9046400388 90464-00388 New Genuine Part
9046400391 90464-00391 New Genuine Part
9048001231 90480-01231 New Genuine Part
9048001234 90480-01234 New Genuine Part
9048001270 90480-01270 New Genuine Part
9048001294 90480-01294 New Genuine Part
9048001295 90480-01295 New Genuine Part
9095901073 90959-01073 New Genuine Part
9095901074 90959-01074 New Genuine Part
9095901160 90959-01160 New Genuine Part
9095901161 90959-01161 New Genuine Part
9095901162 90959-01162 New Genuine Part
9095901163 90959-01163 New Genuine Part
9095901179 90959-01179 New Genuine Part
9095901205 90959-01205 New Genuine Part
9151140412 91511-40412 New Genuine Part
9338115010 93381-15010 SCREW
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
