LX60

Toyota CHASER · 1980 · 5,439 parts · 181 categories

← Back to categories

5,439 items

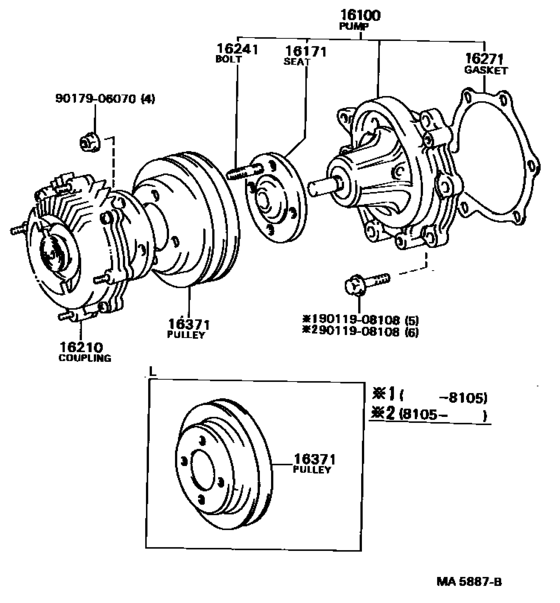

Water Pump ([09.1980 - ] (8009- )L,2LTE) 13

#	OEM	Part name
16100	16100-59126	Pump Assy, Engine Water
16100	16100-59129	Pump Assy, Engine Water
16100	16100-59127	Pump Assy, Engine Water
16171	16171-54011	Seat, Water Pump Pulley
16210	16210-54030	Coupling Assy, Fluid
16241	16193-13020	Bolt, Stud(For Water Pump Cover)
16241	16193-54010	Bolt, Stud(For Water Pump Coupling)
16271	16271-54012	Gasket, Water Pump
16271	16271-54014	Gasket, Water Pump
16371	16371-54010	Pulley, Fan
9011908108	90119-08108	Bolt(For Clutch Master Cylinder Setting)
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1

OEM	Part name	Category
16100-59126	Pump Assy, Engine Water	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16100-59127	Pump Assy, Engine Water	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16100-59129	Pump Assy, Engine Water	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16171-54011	Seat, Water Pump Pulley	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16193-13020	Bolt, Stud(For Water Pump Cover)	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16193-54010	Bolt, Stud(For Water Pump Coupling)	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16210-54030	Coupling Assy, Fluid	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16271-54012	Gasket, Water Pump	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16271-54014	Gasket, Water Pump	Water Pump ([09.1980 - ] (8009- )L,2LTE)
16371-54010	Pulley, Fan	Water Pump ([09.1980 - ] (8009- )L,2LTE)
90119-08108	Bolt(For Clutch Master Cylinder Setting)	Water Pump ([09.1980 - ] (8009- )L,2LTE)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Water Pump ([09.1980 - ] (8009- )L,2LTE)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Water Pump ([09.1980 - ] (8009- )L,2LTE)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 181
Collected: 2026-08-02
