Search › Model › LX60

LX60

Toyota CHASER · 1980 · 5,439 parts · 181 categories
LX60 ×

← Back to categories

5,439 items

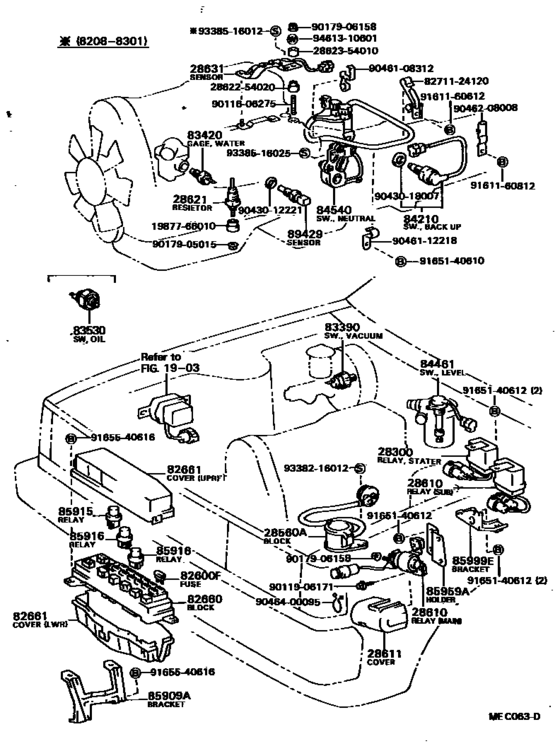

Switch & Relay & Computer ([08.1982 - ] (8208- )LX6#) 75
#OEMPart name
28300 28300-54030 Relay Assy, Starter
28610 28610-54031 Relay Assy, Glow Plug
28610 28610-54061 Relay Assy, Glow Plug
28610 28610-54130 Relay Assy, Glow Plug
28610 28610-64020 Relay Assy, Glow Plug
28611 28611-64010 Cover, Glow Plug Relay
28621 28621-54021 Resistor, Glow Plug
28621 28621-54080 Resistor, Glow Plug
28621 28621-54031 Resistor, Glow Plug
28621 28621-64011 Resistor, Glow Plug
28631 28631-54010 Sensor, Glow Plug Current
28631 28631-54040 Sensor, Glow Plug Current
82600 90982-09001 Fuse, Fuse Block
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82660 82660-22071 Block Assy, Relay, Engine Room
82660 82660-22160 Block Assy, Relay, Engine Room
82660 90987-02006 Relay
82660 82660-22080 Block Assy, Relay, Engine Room
82660 82660-22150 Block Assy, Relay, Engine Room
82661 82661-20020 Cover, Relay Block, No.1
82661 82661-22011 Cover, Relay Block, No.1
82661 82661-22030 Cover, Relay Block, No.1
82661 82661-22040 Cover, Relay Block, No.1
82661 82661-22060 Cover, Relay Block, No.1
82661 82661-22070 Cover, Relay Block, No.1
82661 82661-22080 Cover, Relay Block, No.1
83390 83390-30020 Switch Assy, Vacuum Warning
83420 83420-16010 Gage Assy, Water Temperature Sender
83420 83420-20020 Gage Assy, Water Temperature Sender
83530 83530-36011 Switch Assy, Oil Pressure (For Engine)
83530 83530-60030 Switch Assy, Oil Pressure (For Engine)
84210 84210-60010 Switch Assy, Back-Up Lamp
84461 84461-30040 Switch, Level Warning
84540 84540-14080 Switch Assy, Neutral Start
85909 85909-22010 Bracket Sub-Assy, Relay Block
85915 90987-02002 Relay, Ignition, No.1
85915 90987-02004 Relay Assy, Starter
85916 90987-01003 Relay, Fuel Lid Opener
85959 85959-22050 Holder, Relay
85999 85959-22040 Bracket, Relay, No.5
85999 85999-22080 Bracket, Relay, No.5
89429 89422-30020 Sensor, Water Temperature (For E.f.i.)
89429 89422-12010 Sensor, Water Temperature (For E.f.i.)
1987766010 19877-66010 Insulator Sub-Assy, Glow Plug, No.1
2862254020 28622-54020 Insulator, Glow Plug Resistor, No.1
2862354010 28623-54010 Insulator, Glow Plug Resistor, No.2
8271124120 82711-24120 Wire, Fuse To Fuse(for Combustion Heater)
9011606275 90116-06275 Bolt, Stud(For Injection Pipe Clamp)
9011606275 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
9011906171 90119-06171 BOLT
9017905015 90179-05015 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9043012221 90430-12221 Gasket
9043018007 90430-18007 Gasket(For Water Hole)
9043018007 90430-18008 Gasket
9046108312 90461-08312 New Genuine Part
9046112218 90461-12218 New Genuine Part
9046208008 90462-08008 New Genuine Part
9046400095 90464-00095 New Genuine Part
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9165140610 91651-40610 RIVET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9338216012 93382-16012 New Genuine Part
9338516012 93385-16012 New Genuine Part
9338516025 93385-16025 New Genuine Part
9461310601 94613-10601 Washer (For Primary Regulator Valve)
