LX60

Toyota CHASER · 1980 · 5,439 parts · 181 categories

5,439 items

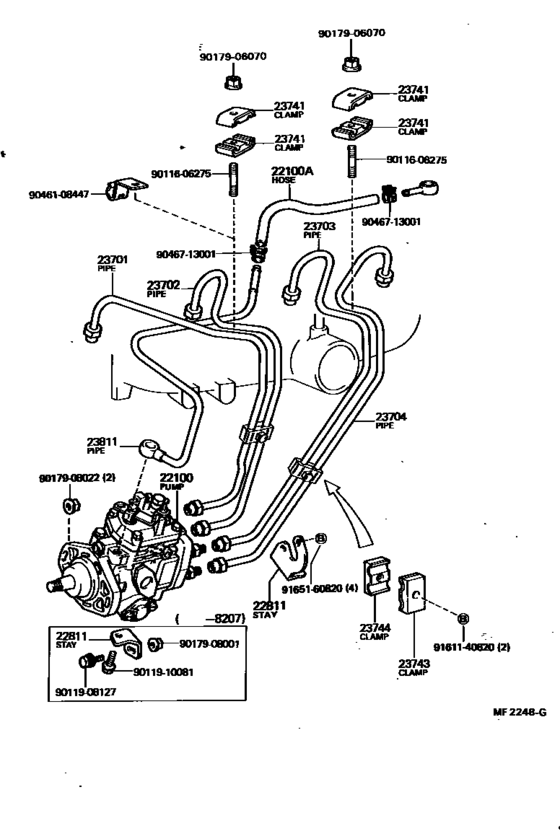

Injection Pump Assembly ([09.1980 - ] (8009- )L) 41

#	OEM	Part name
22100	22100-54111	Pump Assy, Injection Or Supply
22100	22100-54112	Pump Assy, Injection Or Supply
22100	90099-05166	Nut, Timer Round
22100	22100-54240	Pump Assy, Injection Or Supply
22100	22100-54242	Pump Assy, Injection Or Supply
22100	22100-54241	Pump Assy, Injection Or Supply
22100	95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
22811	22811-54040	Stay, Injection Pump, No.1
22811	22811-54042	Stay, Injection Pump, No.1
23701	23701-54051	Pipe Sub-Assy, Injection, No.1
23701	23701-54082	Pipe Sub-Assy, Injection, No.1
23701	23701-54072	Pipe Sub-Assy, Injection, No.1
23702	23702-54050	Pipe Sub-Assy, Injection, No.2
23702	23702-54081	Pipe Sub-Assy, Injection, No.2
23702	23702-54071	Pipe Sub-Assy, Injection, No.2
23703	23703-54050	Pipe Sub-Assy, Injection, No.3
23704	23704-54050	Pipe Sub-Assy, Injection, No.4
23741	23741-56010	Clamp, Injection Pipe, No.1
23743	23741-54010	Clamp, Injection Pipe, No.1
23744	23742-54010	Clamp, Injection Pipe, No.2
23811	23811-54051	Pipe, Fuel(For Fuel Filter To Injection Pump)
23811	23811-54090	Pipe, Fuel(For Fuel Filter To Injection Pump)
9011606275	90116-06275	Bolt, Stud(For Injection Pipe Clamp)
9011606275	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
9011908127	90119-08127	BOLT
9011910081	90119-10081	New Genuine Part
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017908001	90179-08001	New Genuine Part
9017908001	90179-08233	NUT
9017908022	90179-08022	NUT
9046108447	90461-08447	New Genuine Part
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9161140620	91611-40620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate

OEM	Part name	Category
22100-54111	Pump Assy, Injection Or Supply	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22100-54112	Pump Assy, Injection Or Supply	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22100-54240	Pump Assy, Injection Or Supply	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22100-54241	Pump Assy, Injection Or Supply	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22100-54242	Pump Assy, Injection Or Supply	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22811-54040	Stay, Injection Pump, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
22811-54042	Stay, Injection Pump, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23701-54051	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23701-54072	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23701-54082	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23702-54050	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23702-54071	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23702-54081	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23703-54050	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23704-54050	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23741-54010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23741-56010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23742-54010	Clamp, Injection Pipe, No.2	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23811-54051	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
23811-54090	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90099-05166	Nut, Timer Round	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90116-06275	Bolt, Stud(For Injection Pipe Clamp)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90119-08127	BOLT	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90119-10081	New Genuine Part	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90179-08001	New Genuine Part	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90179-08022	NUT	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90179-08233	NUT	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90461-08447	New Genuine Part	Injection Pump Assembly ([09.1980 - ] (8009- )L)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
91611-40620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
91651-60820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([09.1980 - ] (8009- )L)
91651-B0820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([09.1980 - ] (8009- )L)
95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Injection Pump Assembly ([09.1980 - ] (8009- )L)
96135-51300	Clamp, Hose	Injection Pump Assembly ([09.1980 - ] (8009- )L)
