LX60

Toyota CHASER · 1980 · 5,439 parts · 181 categories
LX60 ×

← Back to categories

5,439 items

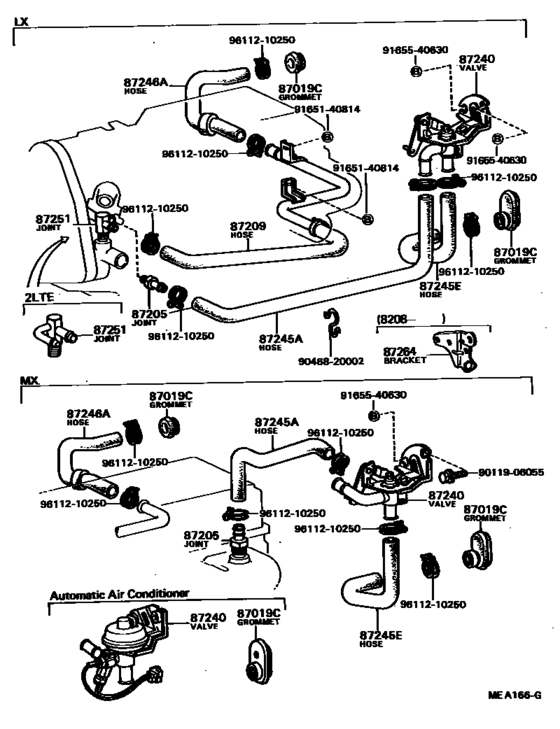

Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- )LX6#,MX61) 19
#OEMPart name
87019 90480-36011 Grommet, Heater Hose
87019 96533-13017 Grommet, Heater Hose
87205 87251-30200 Union(For Water By-Pass Hose)
87209 87209-22050 Hose Sub-Assy, Water
87209 87209-22051 Hose Sub-Assy, Water
87240 87240-22150 Valve Assy, Heater Water
87245 87245-22460 Hose, Heater Water, Inlet A
87245 87245-22130 Hose, Heater Water, Inlet E
87246 87245-22331 Hose, Heater Water, Outlet A
87246 87245-22600 Hose, Heater Water, Outlet A
87251 87251-30230 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87264 87263-22050 Bracket, Heater Water Hose
9011906055 90119-06055 New Genuine Part
9046820002 90468-20002 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165540630 91655-40630 New Genuine Part
9165540630 91652-60630 New Genuine Part
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
