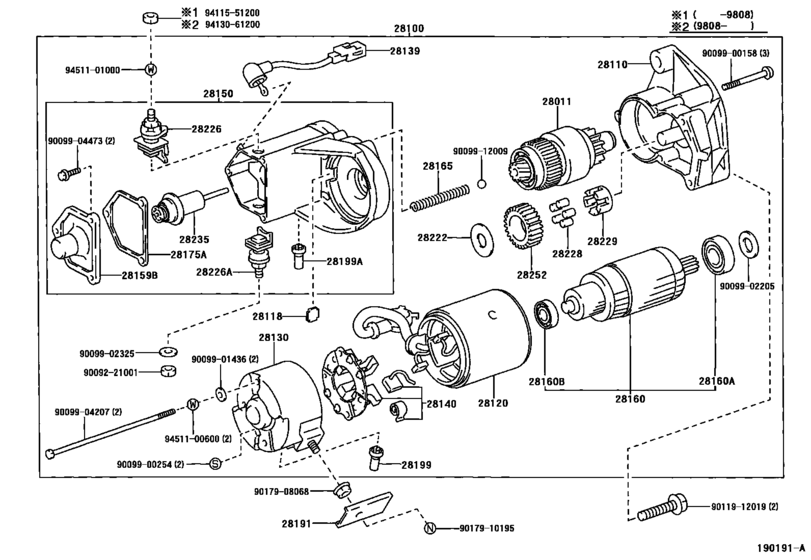

| 28011-54010 |
Clutch Sub-Assy, Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28100-54370 |
Starter Assy |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28115-54011 |
Housing Assy, Starter Drive |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28118-77090 |
Plate(For Starter Yoke) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28120-56081 |
Yoke Assy, Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28130-54390 |
Frame Assy, Starter Commutator End |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28139-54251 |
Wire, Lead, No.1(For Starter) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28139-56290 |
Wire, Lead, No.1(For Starter) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28140-77090 |
Holder Assy, Starter Brush |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28150-54320 |
Switch Assy, Magnet Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28159-56310 |
Cover, Magnet Switch |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28160-54140 |
Armature Assy, Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28165-77090 |
Spring, Starter Magnet Switch Return |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28175-56310 |
Gasket, Magnet Switch Cover |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28191-54030 |
Stay, Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28199-46080 |
Cover, Starter End Frame |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28199-54190 |
Cover, Starter End Frame |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28222-54370 |
Washer, Starter Idle Gear Clutch |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28226-54220 |
Starter Kit, Motor Terminal |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28226-54320 |
Starter Kit, Battery Terminal |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28228-56080 |
Roller, Starter Idle Gear Clutch |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28229-56080 |
Retainer, Starter Idle Gear |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28235-17030 |
Plunger, Magnet Switch |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 28254-77090 |
Pinion, Starter Drive |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90092-21001 |
NUT |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-00158 |
SCREW |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-00254 |
New Genuine Part |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-01436 |
New Genuine Part |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-02205 |
Washer, Felt, Starter |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-02325 |
WASHER |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-04207 |
New Genuine Part |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-04473 |
New Genuine Part |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-10107 |
Bearing, Starter Armature |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-10119 |
Bearing, Starter Armature |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90099-12009 |
Ball, Starter Clutch |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90119-12019 |
Bolt(For Transaxle & Engine Setting) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90179-08068 |
NUT |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 90179-10195 |
NUT WWASHER |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 94115-51200 |
Nut(For Backing Plate To Steering Knuckle Setting) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 94130-61200 |
Nut |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 94511-00600 |
Washer, Lock, No.2 |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
| 94511-01000 |
Washer(For Rear Drive Shaft) |
Starter ([09.1996 - ] 12V 2.7KW (9609- )2LTE) |
