Search › Model › LX100

LX100

Toyota CHASER · 1996 · 4,636 parts · 200 categories
LX100 ×

← Back to categories

4,636 items

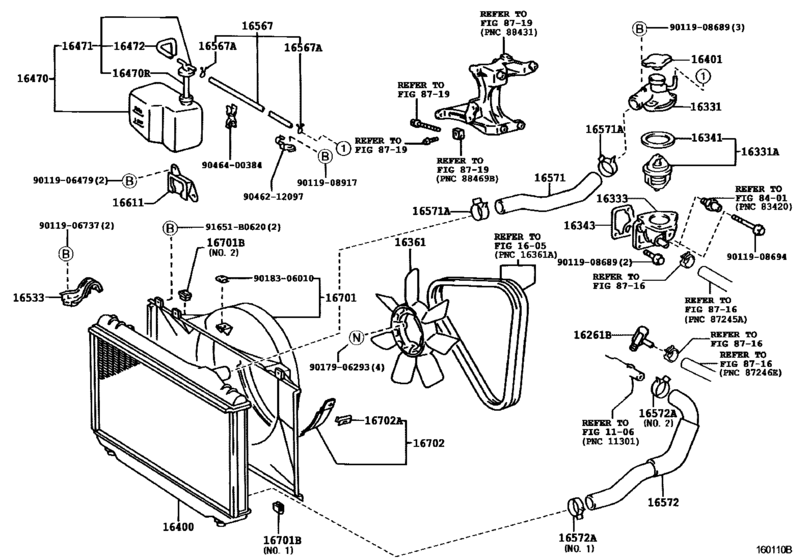

Radiator & Water Outlet ([09.1996 - 08.1999] (9609-9908)2LTE) 52
#OEMPart name
16261 87251-89113 Union(For Water By-Pass Hose)
16331 16331-54160 Outlet, Water
16331 16340-54010 Thermostat
16333 16333-54123 Housing, Water Outlet
16341 16341-35010 Gasket, Water Outlet
16343 16343-54040 Gasket, Water Outlet Housing
16361 16361-70030 Fan
16400 16400-5B440 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-5B440 Cap Sub-Assy, Radiator
16403 16403-5B440 Core Sub-Assy, Radiator
16406 16406-74520 Support(For Oil Cooler)
16442 16462-46040 Ring, O(For Radiator Upper Tank)
16470 16470-54260 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-54230 Cap Sub-Assy, Reserve Tank
16472 16477-54260 Hose, Breather
16491 16491-5B100 Cooler, Oil(For Atm)
16491 16492-62060 Ring, O(For Atm Oil Cooler)
16491 16493-74520 Washer, Plate(For Atm Oil Cooler)
16495 16495-5B100 Nut, Flare(For Atm Oil Cooler)
16533 16505-46060 Support, Radiator, Upper
16535 90480-40012 Support, Radiator, Lower
16567 16567-54090 Hose(For Radiator Reserve Tank)
16567 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16571 16571-54360 Hose, Radiator, Inlet
16571 90467-37006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-54400 Hose, Radiator, Outlet
16572 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90466-41008 Clamp, Hose(For Radiator Hose)
16611 16611-54120 Bracket, Radiator Reserve Tank
16701 16701-54260 Shroud Sub-Assy, Fan
16701 90541-11002 Cushion, Fan Shroud
16701 90541-14002 Cushion, Fan Shroud
16702 16702-54030 Shroud Sub-Assy, Fan, No.2
16702 90468-06013 Clip(For Fan Shroud)
91651 91651-B0620 New Genuine Part
9011906479 90119-06479 New Genuine Part
9011906479 90119-06341 BOLT
9011906737 90119-06737 BOLT WWASHER
9011908689 90119-08689 Bolt(For Clutch Release Cylinder Setting)
9011908689 91611-G0820 Bolt
9011908694 90119-08694 BOLT
9011908917 90119-08917 New Genuine Part
9011908917 90119-08760 Bolt
9017906293 90179-06293 NUT
9018306010 90183-06010 NUT
9046212097 90462-12097 New Genuine Part
9046400384 90464-00384 New Genuine Part
