LX100

Toyota CHASER · 1996 · 4,636 parts · 200 categories
LX100 ×

← Back to categories

4,636 items

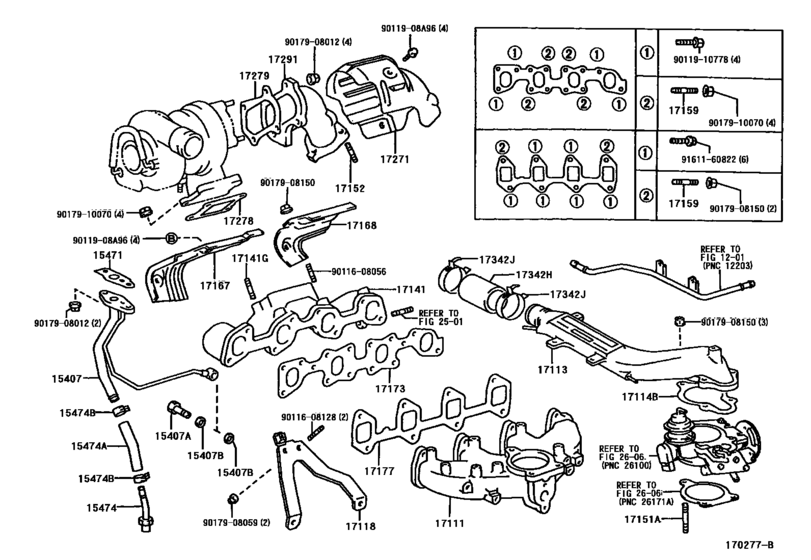

Manifold ([09.1996 - 08.1999] (9609-9908)2LTE) 71
#OEMPart name
4175 04175-54021 Gasket Kit, Turbocharger
4176 04176-54040 Seal Kit, Turbocharger
15407 15407-54040 Pipe Sub-Assy, Turbo Oil Inlet
15407 15407-54041 Pipe Sub-Assy, Turbo Oil Inlet
15407 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 96341-11000 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 90430-10035 Gasket(For Water Hole)
15407 90904-30004 Gasket(For Turbo Oil Inlet Pipe)
15471 15471-58010 Gasket, Turbo Oil Inlet
15474 15476-54020 Pipe, Turbo Oil Outlet
15474 15491-54020 Hose, Turbo Oil Outlet
15474 90467-26003 Clamp Or Clip(For Turbo Oil Outlet Hose)
15474 90467-26007 Clip(For Ventilation Hose No.2)
17021 17021-54060 Housing Sub-Assy, Bearing
17021 17021-54070 Housing Sub-Assy, Bearing
17021 90116-08158 Bolt, Stud(For Bearing Housing)
17021 90521-99007 Ring, Hole Snap(For Bearing Housing)
17025 90116-08384 Bolt, Stud(For Turbine Housing)
17111 17101-54092 Manifold, Intake
17113 17113-54120 Pipe, Intake
17114 17116-54011 Gasket, Intake Flange
17118 17118-54040 Stay, Manifold
17141 17141-54100 Manifold, Exhaust
17141 90116-10094 Bolt, Stud(For Turbine Housing)
17151 90116-08292 Bolt, Stud(For Manifold To Venturi)
17152 90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)
17159 90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)
17159 90116-10140 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17167 17167-54100 Insulator, Exhaust Manifold Heat, No.1
17168 17168-54030 Insulator, Exhaust Manifold Heat, No.2
17173 17173-54050 Gasket, Exhaust Manifold To Head
17177 17177-54021 Gasket, Intake Manifold To Head, No.1
17201 17201-54081 Turbocharger Sub-Assy
17201 17201-54090 Turbocharger Sub-Assy
17224 17024-54050 Housing, Compressor
17224 17024-54060 Housing, Compressor
17229 17229-67010 Band, V
17230 17230-59135 Repair Actuaor Assy, W/bracket
17230 17230-59145 Repair Actuaor Assy, W/bracket
17230 17230-59136 Repair Actuaor Assy, W/bracket
17230 90201-08081 Washer, Plate(For Repair Actuator Set)
17230 90201-08082 Washer, Plate(For Repair Actuator Set)
17230 90201-08086 Washer, Plate(For Repair Actuator Set)
17230 90201-08087 Washer, Plate(For Repair Actuator Set)
17230 91621-60822 Bolt, W/washer(For Repair Actuator Set)
17271 17271-54080 Insulator, Turbo, No.1
17278 17278-54021 Gasket, Turbo To Exhaust Manifold
17279 17279-54020 Gasket, Turbine Outlet Elbow
17291 17291-54090 Elbow, Turbine Outlet
17294 90445-12111 Hose(For Repair Actuator Set)
17294 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
17294 96132-51100 Clip (For Hose)
17342 17342-54030 Hose, Air, No.2(For Turbocharger)
17342 90467-48002 Clamp Or Clip(For Air Hose, No.1)
9011908 90119-08A96 BOLT WWASHER
9011206003 90112-06003 New Genuine Part
9011608056 90116-08056 Bolt, Stud(For Manifold Stay)
9011608128 90116-08128 Bolt, Stud(For Manifold Stay)
9011910778 90119-10778 BOLT W-WASHER
9017906018 90179-06018 New Genuine Part
9017908012 90179-08012 NUT
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9017908150 90179-08150 NUT
9017910070 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
9017910070 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
9025403013 90254-03013 New Genuine Part
9052304002 90523-04002 RING
9161160822 91611-60822 Bolt
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
