LX100

Toyota CHASER · 1996 · 4,636 parts · 200 categories
LX100 ×

← Back to categories

4,636 items

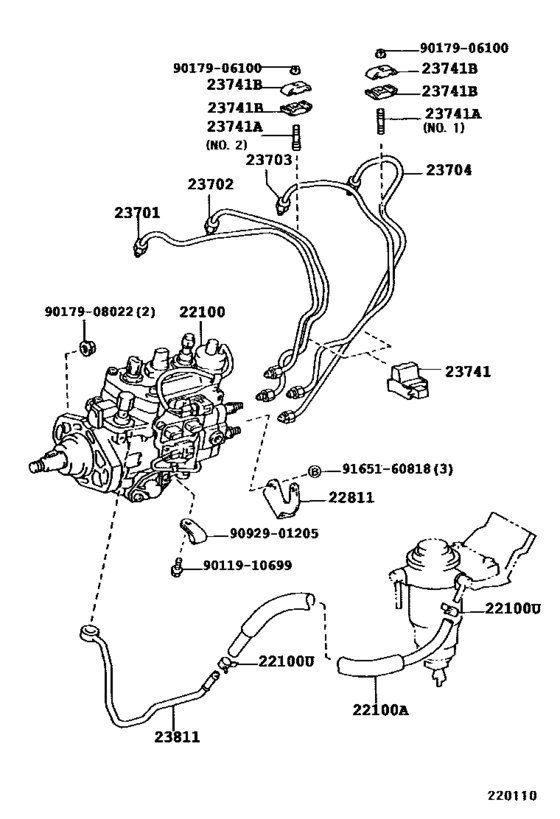

Injection Pump Assembly ([09.1996 - 08.1999] (9609-9908)2LTE) 22
#OEMPart name
22100 22100-5B440 Pump Assy, Injection Or Supply
22100 90447-14068 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 90467-13039 Clamp, Hose
22100 96135-51300 Clamp, Hose
22811 22811-54050 Stay, Injection Pump, No.1
23701 23701-54130 Pipe Sub-Assy, Injection, No.1
23702 23702-54160 Pipe Sub-Assy, Injection, No.2
23703 23703-54100 Pipe Sub-Assy, Injection, No.3
23703 23703-05011 Pipe Sub-Assy, Injection, No.3
23704 23704-54100 Pipe Sub-Assy, Injection, No.4
23704 23704-05010 Pipe Sub-Assy, Injection, No.4
23741 23741-54030 Clamp, Injection Pipe, No.1
23741 90116-06041 Bolt, Stud(For Intake Manifold To Glow Plug Connector No.1)
23741 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
23741 23741-56010 Clamp, Injection Pipe, No.1
23811 23811-54151 Pipe, Fuel(For Fuel Filter To Injection Pump)
9011910699 90119-10699 BOLT WWASHER
9017906100 90179-06100 New Genuine Part
9017906100 90179-06204 NUT
9017908022 90179-08022 NUT
9092901205 90929-01205 CLAMP
9165160818 91651-60818 BOLTWWASHER
