LX100

Toyota CHASER · 1996 · 4,636 parts · 200 categories
LX100 ×

← Back to categories

4,636 items

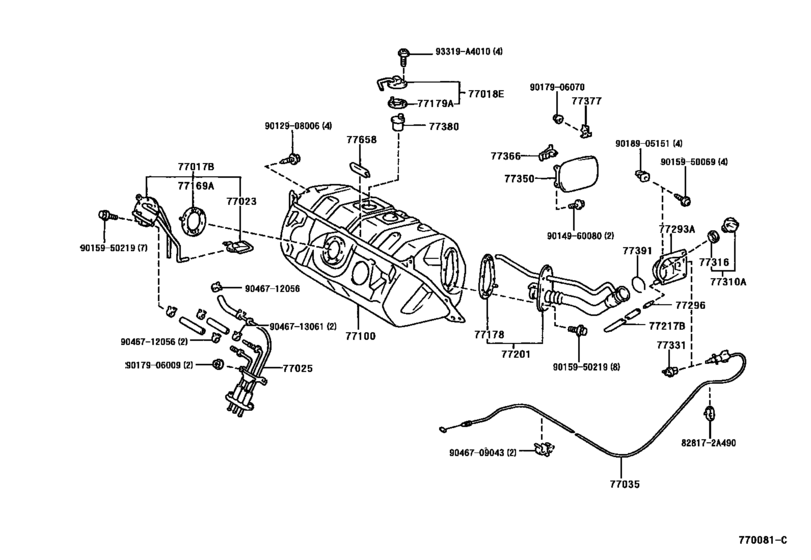

Fuel Tank & Tube ([09.1996 - ] (9609- )LX100) 66
#OEMPart name
77017 77017-30200 Tube Sub-Assy, Fuel Tank Vent
77018 77018-22070 Tube Sub-Assy, Fuel Tank Evaporation Vent
77023 77023-31020 Filter Sub-Assy, Fuel Suction Tube
77025 77025-22100 Tube Sub-Assy, Fuel Main & Return, Rear
77035 77035-22220 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-22500 Tank Assy, Fuel
77169 77169-14010 Gasket, Fuel Pump Bracket
77178 77178-22020 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-22340 Pipe Sub-Assy, Fuel Tank Inlet
77217 77217-22020 Hose, Fuel Tank Inlet
77241 95333-08020 Hose, Lpg Injector
77241 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77251 77251-22520 Tube, Fuel Main
77255 77255-22410 Tube, Fuel Return
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77262 77262-22070 Tube, Fuel Tank To Canister, No.2
77277 90447-12064 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-32020 Protector, Fuel Tube, No.3
77285 77285-22100 Clamp, Fuel Tube W/grommet, No.1
77286 77286-30060 Clamp, Fuel Tube W/grommet, No.2
77289 77286-30070 Clamp, Fuel Tube, No.2
77289 77289-30040 Clamp, Fuel Tube, No.3
77293 77293-22070 Shield, Fuel Tank Filler Pipe, No.3
77296 77296-22070 Plate, Fuel Tube Grommet Support
77298 77298-30090 Clamp, Fuel Tube, No.4
77298 77298-30120 Clamp, Fuel Tube, No.4
77299 77299-30030 Clamp, Fuel Tube, No.5
77310 77310-12150 Cap Assy, Fuel Tank
77310 77310-32011 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77331 77331-22010 Bracket, Fuel Lid Lock Control
77350 77350-22160 Lid Assy, Fuel Filler Opening
77366 77360-22070 Spring, Fuel Filler Opening Lid Hinge
77377 77377-22060 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77391 77391-22020 Ring, Fuel Inlet Box
77411 77411-30020 Support, Fuel Tube Grommet, No.1
77658 77658-30030 Moulding, Fuel Tank Edge
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
91626 91626-A0616 BOLT WWASHER
91626 91626-A0620 New Genuine Part
91626 91626-A0630 New Genuine Part
93319 93319-A4010 SCREW WWASHER
828172 82817-2A490 Protector, Wiring Harness, No.12
9011906390 90119-06390 BOLT WWASHER
9012908006 90129-08006 New Genuine Part
9014960080 90149-60080 New Genuine Part
9015950069 90159-50069 SCREW
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018905151 90189-05151 New Genuine Part
9046709043 90467-09043 Clamp, Hood Lock Control Cable
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
