LS151

Toyota CROWN-MAJESTA · 1995 · 5,772 parts · 229 categories

5,772 items

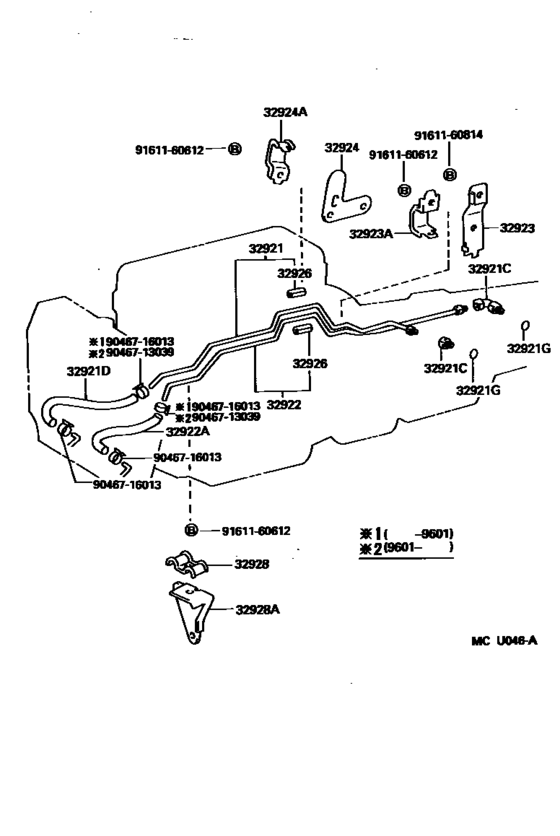

Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151) 24

#	OEM	Part name
32921	32921-30620	Tube, Oil Cooler Inlet, No.1
32921	90404-16029	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90445-15020	Hose(For Oil Cooler Inlet)
32921	90445-17096	Hose, Oil Cooler Water Outlet
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-30620	Tube, Oil Cooler Outlet, No.1
32922	32922-30621	Tube, Oil Cooler Outlet, No.1
32922	90445-15057	Hose, Oil Cooler Tube(For Outlet)
32922	32941-22310	Hose(For Oil Cooler Inlet)
32922	90445-17134	Hose(For Oil Cooler Inlet)
32923	32923-30210	Clamp, Automatic Transmission Oil Cooler Tube
32923	32929-22050	Clamp, Automatic Transmission Oil Cooler Tube
32924	32924-30210	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	90462-12047	Clamp, Automatic Transmission Oil Cooler Tube
32928	32928-22110	Clamp, Automatic Transmission Oil Cooler Tube, No.5
9046713039	90467-13039	Clamp, Hose
9046713039	96135-51300	Clamp, Hose
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160814	91611-60814	Bolt

OEM	Part name	Category
32921-30620	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32922-30620	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32922-30621	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32923-30210	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32924-30210	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32928-22110	Clamp, Automatic Transmission Oil Cooler Tube, No.5	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32929-22050	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
32941-22310	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90404-16029	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90445-15020	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90445-15057	Hose, Oil Cooler Tube(For Outlet)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90445-17096	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90445-17134	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90462-12047	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1995 - ] A341E (9508- )LS151)
