LS151

Toyota CROWN-MAJESTA · 1995 · 5,772 parts · 229 categories
LS151 ×

← Back to categories

5,772 items

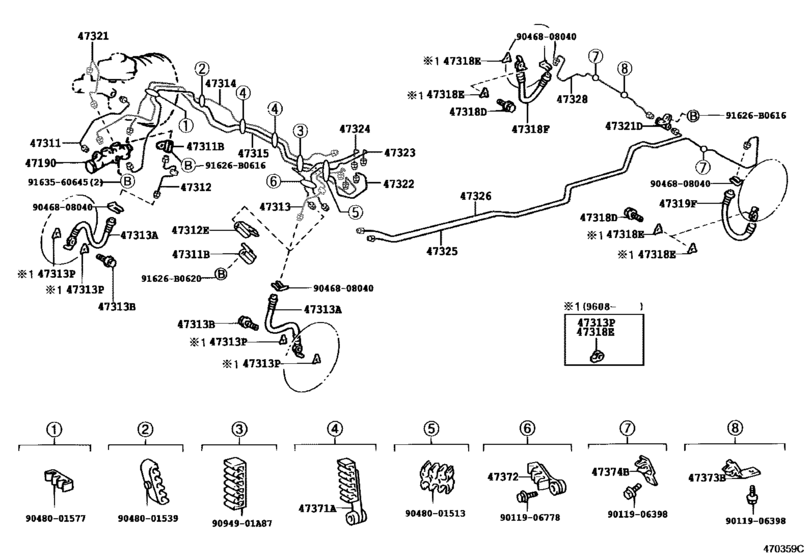

Brake Tube & Clamp ([09.1996 - 09.1999] (9609-9909)LS151) 49
#OEMPart name
47190 47190-30240 Valve Assy, Proportioning & By-Pass
47311 47311-30510 Tube, Front Brake, No.1
47311 90412-10213 Way(For Front Brake Tube)
47312 47312-30390 Tube, Front Brake, No.2
47312 90412-10214 Way, No.1(For Front Brake Tube)
47313 47313-30290 Tube, Front Brake, No.3
47313 47313-30360 Tube, Front Brake, No.3
47313 90947-02842 Hose, Flexible, No.1(For Front)
47313 90401-10042 Bolt, Union(For Front Flexible Hose)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-30320 Tube, Front Brake, No.4
47314 47314-30410 Tube, Front Brake, No.4
47315 47315-30520 Tube, Front Brake, No.5
47315 47315-30540 Tube, Front Brake, No.5
47318 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47318 90947-02840 Hose, Flexible(For Rear Rh)
47321 47321-30240 Tube, Rear Brake, No.1
47321 90412-10215 Way, 2(For Rear Brake Tube)
47321 90413-10281 Way, 3(For Rear Brake Tube)
47322 47322-30170 Tube, Rear Brake, No.2
47322 47322-30230 Tube, Rear Brake, No.2
47323 47323-30190 Tube, Rear Brake, No.3
47324 47324-30150 Tube, Rear Brake, No.4
47324 47324-30230 Tube, Rear Brake, No.4
47325 47325-30030 Tube, Rear Brake, No.5
47325 47325-30040 Tube, Rear Brake, No.5
47326 47326-30060 Tube, Rear Brake, No.6
47328 47328-30020 Tube, Rear Brake, No.8
47371 47371-30420 Clamp, Brake Tube, No.1
47371 47371-30430 Clamp, Brake Tube, No.1
47372 47371-30390 Clamp, Brake Tube, No.1
47373 47371-22420 Clamp, Brake Tube, No.1
47374 47371-22530 Clamp, Brake Tube, No.2
91626 91626-B0616 BOLT WWASHER
91626 91621-J0612 BOLT W-WASHER
91626 91626-B0620 BOLT WWASHER
91626 91621-B0616 Bolt
9094901 90949-01A87 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011906778 90119-06778 New Genuine Part
9011906778 90119-06330 Bolt
9046808040 90468-08040 CLIP
9048001513 90480-01513 New Genuine Part
9048001539 90480-01539 New Genuine Part
9048001577 90480-01577 GROMMET
9163560645 91635-60645 New Genuine Part
9163560645 91631-B0645 New Genuine Part
