Search › Model › LS141

LS141

Toyota CROWN-MAJESTA · 1991 · 4,961 parts · 205 categories

4,961 items

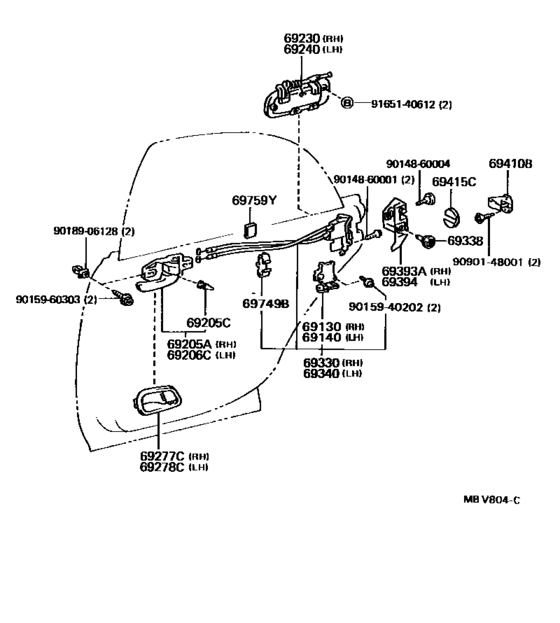

Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141) 34

#	OEM	Part name
69130	69130-30090	Actuator Assy, Rear Door Lock, Rh
69140	69140-30090	Actuator Assy, Rear Door Lock, Lh
69205	69205-30080-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-30080-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-30080-J0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04018	Cushion(For Front Door Inside Handle)
69206	69206-30080-B0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-30080-E0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-30080-J0	Handle Sub-Assy, Front Door Inside, Lh
69230	69230-30140	Handle Assy, Rear Door Outside, Rh
69240	69240-30140	Handle Assy, Rear Door Outside, Lh
69277	69297-30020-B0	Bezel, Rear Door Inside Handle, Rh
69277	69297-30020-E0	Bezel, Rear Door Inside Handle, Rh
69277	69297-30020-J0	Bezel, Rear Door Inside Handle, Rh
69278	69298-30020-B0	Bezel, Rear Door Inside Handle, Lh
69278	69298-30020-E0	Bezel, Rear Door Inside Handle, Lh
69278	69298-30020-J0	Bezel, Rear Door Inside Handle, Lh
69330	69050-30360	Lock Assy, Rear Door, Rh
69338	69338-30010	Knob, Child Protector Lock Lever
69340	69060-30380	Lock Assy, Rear Door, Lh
69393	69393-30020	Cover, Rear Door Lock, Outer Rh
69394	69394-30020	Cover, Rear Door Lock, Outer Lh
69410	69410-30030	Plate Assy, Front Door Lock Striker
69415	69415-30010	Cover, Door Lock Striker, Front
69749	69749-30050	Clamp, Front Door Lock Link
69759	69759-30090	Silencer, Front Door Lock Link
9014860001	90148-60001	New Genuine Part
9014860004	90148-60004	New Genuine Part
9015940202	90159-40202	SCREW WWASHER
9015960303	90159-60303	SCREW
9018906128	90189-06128	GROMMET SCREW
9090148001	90901-48001	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part

OEM	Part name	Category
69050-30360	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69060-30380	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69130-30090	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69140-30090	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69205-30080-B0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69205-30080-E0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69205-30080-J0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69206-30080-B0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69206-30080-E0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69206-30080-J0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69230-30140	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69240-30140	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69297-30020-B0	Bezel, Rear Door Inside Handle, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69297-30020-E0	Bezel, Rear Door Inside Handle, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69297-30020-J0	Bezel, Rear Door Inside Handle, Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69298-30020-B0	Bezel, Rear Door Inside Handle, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69298-30020-E0	Bezel, Rear Door Inside Handle, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69298-30020-J0	Bezel, Rear Door Inside Handle, Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69338-30010	Knob, Child Protector Lock Lever	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69393-30020	Cover, Rear Door Lock, Outer Rh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69394-30020	Cover, Rear Door Lock, Outer Lh	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69410-30030	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69415-30010	Cover, Door Lock Striker, Front	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69749-30050	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
69759-30090	Silencer, Front Door Lock Link	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90080-11225	New Genuine Part	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90148-60001	New Genuine Part	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90148-60004	New Genuine Part	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90159-60303	SCREW	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90189-06128	GROMMET SCREW	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90541-04018	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90901-48001	New Genuine Part	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
91651-40612	BOLT	Rear Door Lock & Handle ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
