LS141

Toyota CROWN-MAJESTA · 1991 · 4,961 parts · 205 categories

4,961 items

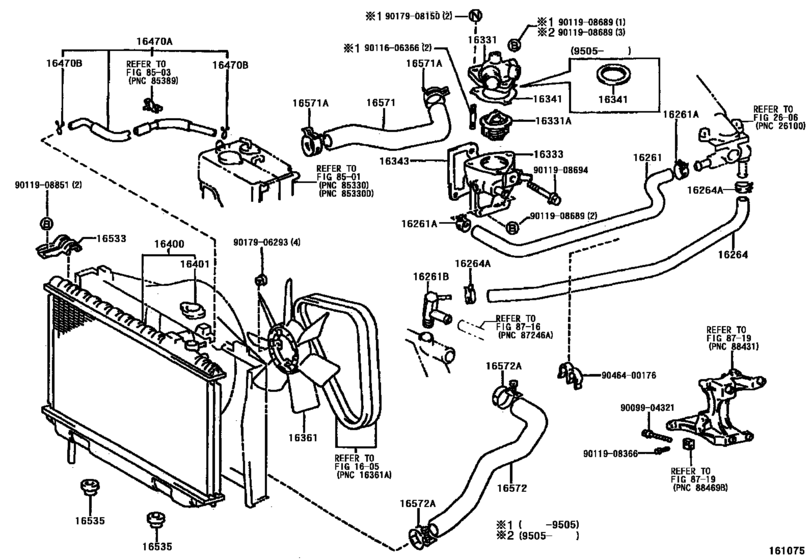

Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE) 57

#	OEM	Part name
16261	16261-54110	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	90404-54037	Union(For Water By-Pass Hose)
16261	90404-54040	Union(For Water By-Pass Hose)
16264	16264-54130	Hose, Water By-Pass, No.2
16331	16331-54130	Outlet, Water
16331	16340-54010	Thermostat
16331	90916-03099	Thermostat
16333	16333-54112	Housing, Water Outlet
16333	16333-54113	Housing, Water Outlet
16341	16341-35010	Gasket, Water Outlet
16341	16341-54040	Gasket, Water Outlet
16343	16343-54040	Gasket, Water Outlet Housing
16361	16361-54060	Fan
16400	16400-5B081	Radiator Assy
16400	16400-5B540	Radiator Assy
16400	53180-30031	Shutter Assy, Radiator
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16401	16401-72090	Cap Sub-Assy, Radiator
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16403	16403-54790	Core Sub-Assy, Radiator
16403	16403-5B540	Core Sub-Assy, Radiator
16406	16406-62060	Support(For Oil Cooler)
16442	16462-54790	Ring, O(For Radiator Upper Tank)
16451	16452-54790	Plate, Radiator Core, Upper
16470	85399-30280	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16491	16491-54790	Cooler, Oil(For Atm)
16491	16492-50020	Ring, O(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16495	16495-54790	Nut, Flare(For Atm Oil Cooler)
16533	16505-41010	Support, Radiator, Upper
16535	90480-35008	Support, Radiator, Lower
16571	16571-54290	Hose, Radiator, Inlet
16571	90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-37005	Clip(For Water Inlet Hose)
16572	16572-54340	Hose, Radiator, Outlet
16572	90467-41004	Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572	90466-41003	Clip, Radiator Hose, No.1
16701	16711-54360	Shroud Sub-Assy, Fan
16701	90468-06013	Clip(For Fan Shroud)
16712	16712-54260	Shroud, Fan, No.2
9009904321	90099-04321	Bolt, Idle Pulley
9011606366	90116-06366	New Genuine Part
9011906558	90119-06558	BOLT WWASHER
9011908366	90119-08366	New Genuine Part
9011908366	90119-08326	New Genuine Part
9011908689	90119-08689	Bolt(For Clutch Release Cylinder Setting)
9011908689	91611-G0820	Bolt
9011908694	90119-08694	BOLT
9011908851	90119-08851	New Genuine Part
9017906293	90179-06293	NUT
9017908150	90179-08150	NUT
9046400176	90464-00176	Clamp(For Clutch Booster Vacuum)
9165140614	91651-40614	Bolt

OEM	Part name	Category
16261-54110	Hose, Water By-Pass	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16264-54130	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16331-54130	Outlet, Water	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16333-54112	Housing, Water Outlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16333-54113	Housing, Water Outlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16340-54010	Thermostat	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16341-54040	Gasket, Water Outlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16343-54040	Gasket, Water Outlet Housing	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16361-54060	Fan	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16400-5B081	Radiator Assy	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16400-5B540	Radiator Assy	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16401-72090	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16403-54790	Core Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16403-5B540	Core Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16452-54790	Plate, Radiator Core, Upper	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16462-54790	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16491-54790	Cooler, Oil(For Atm)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16492-50020	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16495-54790	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16505-41010	Support, Radiator, Upper	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16571-54290	Hose, Radiator, Inlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16572-54340	Hose, Radiator, Outlet	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16711-54360	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
16712-54260	Shroud, Fan, No.2	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
53180-30031	Shutter Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
85399-30280	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90099-04321	Bolt, Idle Pulley	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90116-06366	New Genuine Part	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-06558	BOLT WWASHER	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-08326	New Genuine Part	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-08366	New Genuine Part	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-08689	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-08694	BOLT	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90119-08851	New Genuine Part	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90179-06293	NUT	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90179-08150	NUT	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90404-54037	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90404-54040	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90464-00176	Clamp(For Clutch Booster Vacuum)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90466-41003	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90467-41004	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90468-06013	Clip(For Fan Shroud)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90480-35008	Support, Radiator, Lower	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
90916-03099	Thermostat	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
91611-G0820	Bolt	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
91651-40614	Bolt	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.1993 - ] (9110-9308)2LTHE ; (9308- )2LTE)
