Search › Model › LS141

LS141

Toyota CROWN-MAJESTA · 1991 · 4,961 parts · 205 categories
LS141 ×

← Back to categories

4,961 items

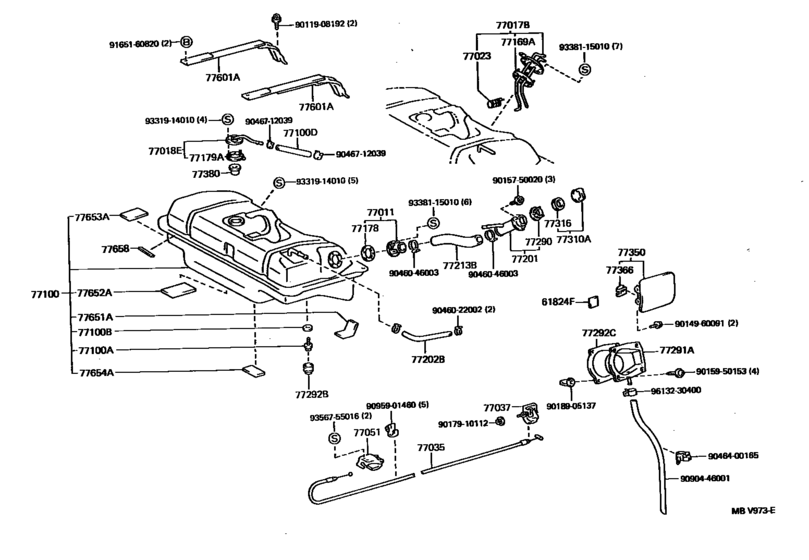

Fuel Tank & Tube ([10.1991 - ] (9110- )LS141) 97
#OEMPart name
61824 61824-30010 Plate, Noise Control, No.1
77011 77011-30040 Pipe Sub-Assy, Fuel Tank Filler, Lower
77017 77017-30160 Tube Sub-Assy, Fuel And Evaporation Vent
77018 77018-30050 Tube Sub-Assy, Fuel Tank Evaporation Vent
77023 77023-12031 Filter Sub-Assy, Fuel Suction Tube
77025 77025-30240 Tube Sub-Assy, Fuel Main & Return, Rear
77035 77035-30160 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77051 77051-30070-B0 Lever Sub-Assy, Fuel Lid Open
77051 77051-30070-E0 Lever Sub-Assy, Fuel Lid Open
77051 77051-30070-J0 Lever Sub-Assy, Fuel Lid Open
77100 77001-30927 Tank Assy, Fuel
77100 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77100 95337-06020 Hose, Differential Pressure Control
77169 77169-14010 Gasket, Fuel Pump Bracket
77178 77178-10010 Gasket, Fuel Pump Bracket
77179 77179-16010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-30210 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-30300 Pipe Sub-Assy, Fuel Tank Inlet
77202 90445-21883 Hose, Fuel, No.1(For Fuel Tank)
77213 77213-30110 Hose, Fuel Tank To Filler Pipe
77252 77252-30310 Tube, Fuel Main, No.2
77252 90447-14036 Hose, Fuel, No.1 (For Main Tube, No.1)
77252 90447-14037 Hose, Fuel, No.2(For Fuel Main Tube)
77253 77259-30110 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77253 95333-08020 Hose, Lpg Injector
77253 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77256 77256-30280 Tube, Fuel Return, No.2
77257 95333-06030 Hose, Fuel
77257 95338-06030 HOSE, FUEL
77267 77267-30050 Protector, Fuel Tube, No.2
77277 90447-12023 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77290 77291-30050 Shield Assy, Fuel Tank Filler Pipe
77291 77291-30040 Shield, Fuel Tank Filler Pipe
77292 77292-30030 Shield, Fuel Tank Filler Pipe, No.2
77295 77295-30020 Grommet, Fuel Tube
77296 77296-30020 Plate, Fuel Tube Grommet Support
77310 77310-32011 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-30270 Lid Assy, Fuel Filler Opening
77366 77366-35010 Spring, Fuel Filler Opening Lid Hinge
77380 77380-14020 Valve Assy, Fuel Cut Off
77601 77601-30140 Band Sub-Assy, Fuel Tank, No.1
77651 77651-30070 Cushion, Fuel Tank, No.1
77652 77652-30030 Cushion, Fuel Tank, No.2
77653 77653-30020 Cushion, Fuel Tank, No.3
77658 77658-30030 Moulding, Fuel Tank Edge
77701 90917-10020 Valve, Check (For Main Fuel Tank)
91656 91656-A0820 Bolt, Radiator Side Support Plate
9011906352 90119-06352 New Genuine Part
9011906352 90119-06430 BOLT WWASHER
9011906635 90119-06635 New Genuine Part
9011908192 90119-08192 New Genuine Part
9014960091 90149-60091 SCREW
9015750020 90157-50020 New Genuine Part
9015950153 90159-50153 New Genuine Part
9015950153 90159-50323 SCREWWWASHER
9015960008 90159-60008 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017910112 90179-10112 New Genuine Part
9017910112 90179-10186 New Genuine Part
9018001421 90180-01421 New Genuine Part
9018905137 90189-05137 GROMMET SCREW
9018906034 90189-06034 GROMMET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046216061 90462-16061 New Genuine Part
9046400165 90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable)
9046400338 90464-00338 New Genuine Part
9046400474 90464-00474 New Genuine Part
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9048001265 90480-01265 New Genuine Part
9048001421 90480-01421 New Genuine Part
9048038003 90480-38003 New Genuine Part
9090446001 90904-46001 New Genuine Part
9095901307 90959-01307 New Genuine Part
9095901308 90959-01308 New Genuine Part
9095901309 90959-01309 New Genuine Part
9095901311 90959-01311 New Genuine Part
9095901314 90959-01314 New Genuine Part
9095901315 90959-01315 New Genuine Part
9095901410 90959-01410 New Genuine Part
9095901460 90959-01460 Clamp (For Fuel Lid Lock Control Cable)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
