Search › Model › LS141

LS141

Toyota CROWN-MAJESTA · 1991 · 4,961 parts · 205 categories

4,961 items

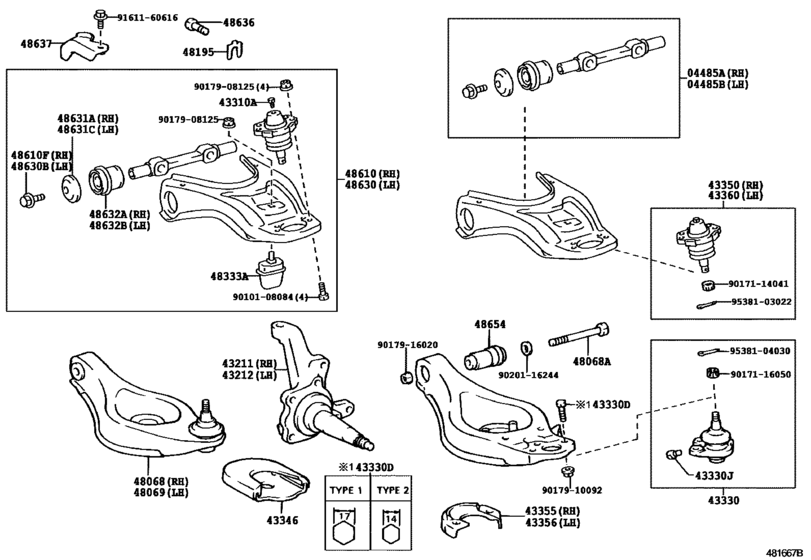

Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141) 40

#	OEM	Part name
4485	04485-30060	Shaft Kit, Upper Suspension Arm
43211	43211-30140	Knuckle, Steering, Rh
43211	43211-30150	Knuckle, Steering, Rh
43212	43212-30090	Knuckle, Steering, Lh
43212	43212-30100	Knuckle, Steering, Lh
43310	90345-06014	Plug (For Ball Joint)
43330	43330-39225	Joint Assy, Lower Ball, Front
43330	43340-39205	Joint Assy, Lower Ball, Front
43330	90101-10188	Bolt (For Front Lower Ball Joint)
43330	90105-10360	Bolt (For Front Lower Ball Joint)
43346	43346-30010	Protector, Lower Ball Joint Dust Cover
43350	43350-39065	Joint Assy, Front Upper Ball, Rh
43355	43355-30040	Deflector, Lower Arm Ice, Rh
43356	43356-30040	Deflector, Lower Arm Ice, Lh
48068	48068-30150	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90101-16024	Bolt(For Front Suspension Lower Arm)
48069	48069-30150	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-15016	Shim, Camber Adjust
48195	90565-15017	Shim, Camber Adjust
48195	90565-15018	Shim, Camber Adjust
48333	48333-30040	Support, Bumper, Front Upper Suspention Arm
48610	48610-30110	Arm Assy, Front Suspension Upper, Rh
48610	90105-12017	Bolt(For Front Suspension Upper Arm Rh)
48630	48630-30110	Arm Assy, Front Suspension, Upper Lh
48631	90948-02020	Retainer, Cushion(For Front Suspension Upper Arm Rh)
48632	48632-30070	Bush, Upper Arm
48636	90105-14062	Bolt, Upper Arm Set
48637	48637-30010	Insulator, Upper Arm Bush
48654	48654-30030	Bush, Lower Arm
9010108084	90101-08084	New Genuine Part
9017114041	90171-14041	Nut, Castle(For Tie Rod End)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908125	90179-08125	New Genuine Part
9017910092	90179-10092	NUT
9017916020	90179-16020	New Genuine Part
9020116244	90201-16244	Washer, Plate (For Rear Drive Pinion)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN

OEM	Part name	Category
04485-30060	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43211-30140	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43211-30150	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43212-30090	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43212-30100	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43330-39225	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43340-39205	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43346-30010	Protector, Lower Ball Joint Dust Cover	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43350-39065	Joint Assy, Front Upper Ball, Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43355-30040	Deflector, Lower Arm Ice, Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
43356-30040	Deflector, Lower Arm Ice, Lh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48068-30150	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48069-30150	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48333-30040	Support, Bumper, Front Upper Suspention Arm	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48610-30110	Arm Assy, Front Suspension Upper, Rh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48630-30110	Arm Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48632-30070	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48637-30010	Insulator, Upper Arm Bush	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
48654-30030	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90101-08084	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90101-10188	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90101-16024	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90105-10360	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90105-12017	Bolt(For Front Suspension Upper Arm Rh)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90105-14062	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90171-14041	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90179-08125	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90179-10092	NUT	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90179-16020	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90201-16244	Washer, Plate (For Rear Drive Pinion)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90565-15016	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90565-15017	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90565-15018	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
90948-02020	Retainer, Cushion(For Front Suspension Upper Arm Rh)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
91611-60616	Bolt(For Transaxle Case Receiver)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
91611-B0616	Bolt(For Transaxle Case Receiver)	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )GS141,JZS141,143,LS141)
