Search › Model › LS136

LS136

Toyota CROWN-MAJESTA · 1987 · 4,508 parts · 208 categories

4,508 items

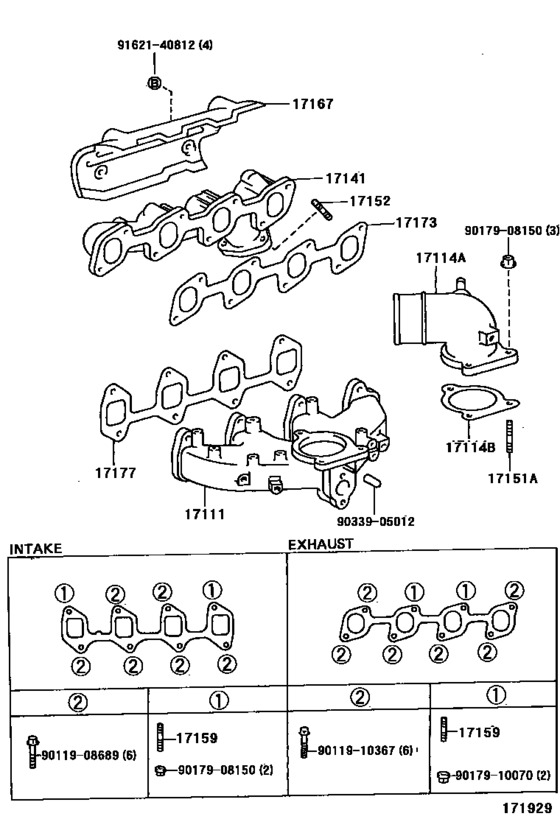

Manifold ([10.1991 - 09.1994] (9110-9409)2L) 22

#	OEM	Part name
17111	17101-54101	Manifold, Intake
17114	17114-54090	Flange, Intake
17114	17116-54011	Gasket, Intake Flange
17141	17141-54090	Manifold, Exhaust
17151	90116-08292	Bolt, Stud(For Manifold To Venturi)
17152	90116-10088	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90116-08220	Bolt, Stud(For Intake Manifold To Cylinder Head)
17159	90116-10141	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17159	92132-60820	Bolt, Stud(For Intake Manifold To Cylinder Head)
17167	17167-54070	Insulator, Exhaust Manifold Heat, No.1
17173	17173-54030	Gasket, Exhaust Manifold To Head
17173	17173-05010	Gasket, Exhaust Manifold To Head
17177	17177-54020	Gasket, Intake Manifold To Head, No.1
17177	17177-54021	Gasket, Intake Manifold To Head, No.1
9011908689	90119-08689	Bolt(For Clutch Release Cylinder Setting)
9011908689	91611-G0820	Bolt
9011910367	90119-10367	BOLT
9017908150	90179-08150	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9033905012	90339-05012	New Genuine Part
9162140812	91621-40812	BOLT

OEM	Part name	Category
17101-54101	Manifold, Intake	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17114-54090	Flange, Intake	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17116-54011	Gasket, Intake Flange	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17141-54090	Manifold, Exhaust	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17167-54070	Insulator, Exhaust Manifold Heat, No.1	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17173-05010	Gasket, Exhaust Manifold To Head	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17173-54030	Gasket, Exhaust Manifold To Head	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17177-54020	Gasket, Intake Manifold To Head, No.1	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
17177-54021	Gasket, Intake Manifold To Head, No.1	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90116-08220	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90116-08292	Bolt, Stud(For Manifold To Venturi)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90116-10088	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90116-10141	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90119-08689	Bolt(For Clutch Release Cylinder Setting)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90119-10367	BOLT	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90179-08150	NUT	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
90339-05012	New Genuine Part	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
91611-G0820	Bolt	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
91621-40812	BOLT	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
92132-60820	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([10.1991 - 09.1994] (9110-9409)2L)
