Search › Model › LS136

LS136

Toyota CROWN-MAJESTA · 1987 · 4,508 parts · 208 categories

4,508 items

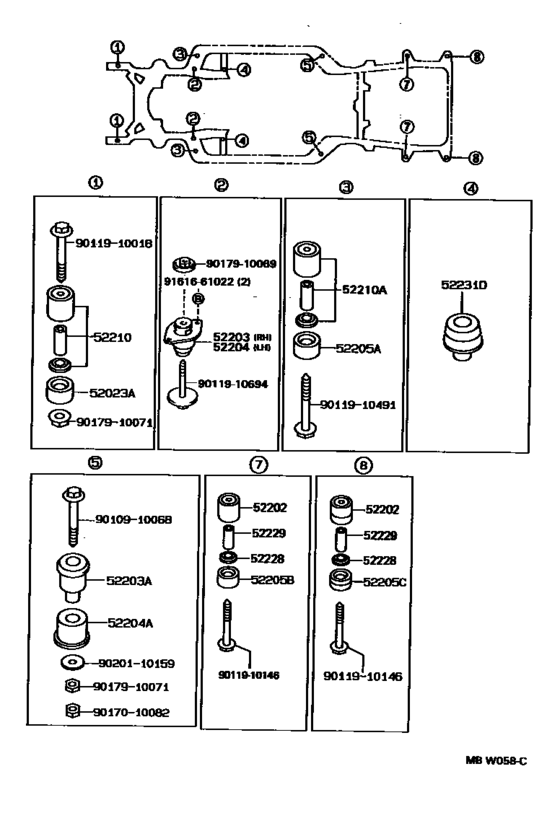

Body Mounting ([10.1991 - ] (9110- )GS136,LS136) 23

#	OEM	Part name
52023	52023-30030	Cushion Sub-Assy, Body Mounting, Rear Lower
52202	52202-91501	Cushion Sub-Assy, Body Mounting, Upper
52203	52203-30060	Cushion Sub-Assy, Rear Frame
52203	52203-91701	Cushion Sub-Assy, Body Mounting, Rear Upper
52204	52204-30040	Cushion Sub-Assy, Body Mounting, Lower
52204	52204-91701	Cushion Sub-Assy, Body Mounting, Rear Lower
52205	52205-91702	Cushion Sub-Assy, Body Mounting, Lower
52210	52210-30010	Cushion Assy, Body Mounting, Upper
52210	52210-30020	Cushion Assy, Body Mounting, Upper
52228	52228-30020	Holder, Body Mount Bolt Spacer, No.2
52229	52229-91501	Spacer, Body Mounting
52231	52231-30040	Cushion, Body Mounting, Rear Upper
9010910068	90109-10068	Bolt(For Body Mount No.3 Cushion)
9011910018	90119-10018	Bolt(For Body Mounting No.1 Cushion)
9011910146	90119-10146	Bolt(For Body Mount No.4 Cushion)
9011910491	90119-10491	Bolt
9011910694	90119-10694	BOLT
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017910069	90179-10069	NUT
9017910071	90179-10071	NUT
9020110159	90201-10159	New Genuine Part
9161661022	91616-61022	Bolt(for Transaxle & Engine Setting)
9161661022	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
52023-30030	Cushion Sub-Assy, Body Mounting, Rear Lower	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52202-91501	Cushion Sub-Assy, Body Mounting, Upper	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52203-30060	Cushion Sub-Assy, Rear Frame	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52203-91701	Cushion Sub-Assy, Body Mounting, Rear Upper	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52204-30040	Cushion Sub-Assy, Body Mounting, Lower	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52204-91701	Cushion Sub-Assy, Body Mounting, Rear Lower	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52205-91702	Cushion Sub-Assy, Body Mounting, Lower	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52210-30010	Cushion Assy, Body Mounting, Upper	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52210-30020	Cushion Assy, Body Mounting, Upper	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52228-30020	Holder, Body Mount Bolt Spacer, No.2	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52229-91501	Spacer, Body Mounting	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
52231-30040	Cushion, Body Mounting, Rear Upper	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90109-10068	Bolt(For Body Mount No.3 Cushion)	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90119-10018	Bolt(For Body Mounting No.1 Cushion)	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90119-10146	Bolt(For Body Mount No.4 Cushion)	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90119-10491	Bolt	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90119-10694	BOLT	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90170-10082	Nut, Hexagon (For Control Rod Setting)	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90179-10069	NUT	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90179-10071	NUT	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
90201-10159	New Genuine Part	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
91616-61022	Bolt(for Transaxle & Engine Setting)	Body Mounting ([10.1991 - ] (9110- )GS136,LS136)
