Search › Model › LS130
LS130

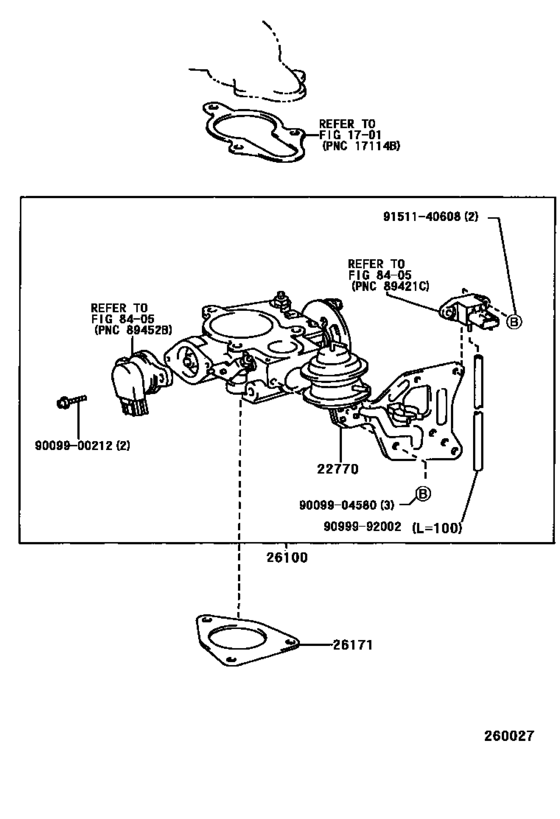

Venturi ([08.1997 - ] (9708- )2LTE) 11
| # | OEM | Part name |
|---|---|---|
| 22770 | 26133-54110 | Actuator, Idel Up |
| 22770 | 26133-54220 | Actuator, Idel Up |
| 26100 | 26100-54201 | Venturi Assy |
| 26100 | 26100-54220 | Venturi Assy |
| 26100 | 26100-54221 | Venturi Assy |
| 26171 | 17116-54021 | Gasket, Intake Flange |
| 26171 | 17116-54030 | Gasket, Intake Flange |
| 9009900212 | 90099-00212 | New Genuine Part |
| 9009904580 | 90099-04580 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9151140608 | 91511-40608 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17116-54021 | Gasket, Intake Flange | Venturi ([08.1997 - ] (9708- )2LTE) |
| 17116-54030 | Gasket, Intake Flange | Venturi ([08.1997 - ] (9708- )2LTE) |
| 26100-54201 | Venturi Assy | Venturi ([08.1997 - ] (9708- )2LTE) |
| 26100-54220 | Venturi Assy | Venturi ([08.1997 - ] (9708- )2LTE) |
| 26100-54221 | Venturi Assy | Venturi ([08.1997 - ] (9708- )2LTE) |
| 26133-54110 | Actuator, Idel Up | Venturi ([08.1997 - ] (9708- )2LTE) |
| 26133-54220 | Actuator, Idel Up | Venturi ([08.1997 - ] (9708- )2LTE) |
| 90099-00212 | New Genuine Part | Venturi ([08.1997 - ] (9708- )2LTE) |
| 90099-04580 | New Genuine Part | Venturi ([08.1997 - ] (9708- )2LTE) |
| 90999-92002 | Air Hose (300 mm) | Venturi ([08.1997 - ] (9708- )2LTE) |
| 91511-40608 | New Genuine Part | Venturi ([08.1997 - ] (9708- )2LTE) |
