Search › Model › LS130

LS130

Toyota CROWN-MAJESTA · 1987 · 5,378 parts · 218 categories

5,378 items

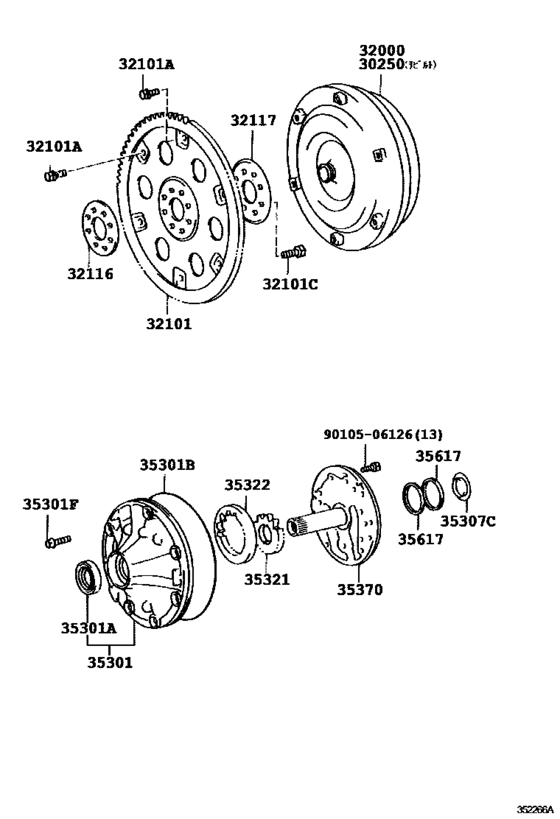

Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131) 30

#	OEM	Part name
30250	30250-30290	Converter Assy, Torque, Rebuilt
30250	30250-30340	Converter Assy, Torque, Rebuilt
32000	32000-30290	Converter Assy, Torque
32000	32000-30340	Converter Assy, Torque
32101	32101-35020	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09009	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09010	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12014	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-35010	Spacer, Drive Plate, Front
32117	32117-35010	Spacer, Drive Plate, Rear
35301	35301-30040	Body Sub-Assy, Front Oil Pump
35301	90311-38029	Seal, Oil (For Front Oil Pump)
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-12070	Gear, Front Oil Pump Drive
35321	35321-12080	Gear, Front Oil Pump Drive
35321	35321-12090	Gear, Front Oil Pump Drive
35321	35321-12100	Gear, Front Oil Pump Drive
35321	35321-12110	Gear, Front Oil Pump Drive
35322	35322-12060	Gear, Front Oil Pump Driven
35322	35322-12070	Gear, Front Oil Pump Driven
35322	35322-12080	Gear, Front Oil Pump Driven
35322	35322-12090	Gear, Front Oil Pump Driven
35322	35322-12100	Gear, Front Oil Pump Driven
35370	35370-30031	Shaft Sub-Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9010506126	90105-06126	Bolt (For Stator Shaft)

OEM	Part name	Category
30250-30290	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
30250-30340	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
32000-30290	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
32000-30340	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
32101-35020	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
32116-35010	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
32117-35010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35301-30040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35321-12070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35321-12080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35321-12090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35321-12100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35321-12110	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35322-12060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35322-12070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35322-12080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35322-12090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35322-12100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35370-30031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35789-30020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90105-06126	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90105-12014	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90119-09009	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90119-09010	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
90311-38029	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - 04.1999] (9110-9904)JZS13#,LS130,131)
