LS130

Toyota CROWN-MAJESTA · 1987 · 5,378 parts · 218 categories

← Back to categories

5,378 items

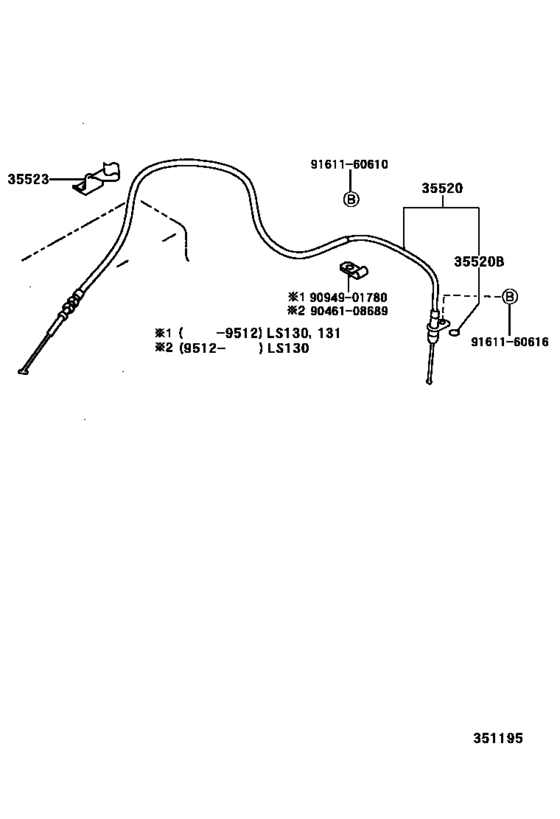

Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131) 10

#	OEM	Part name
35520	35520-30221	Cable Assy, Throttle
35520	90301-09012	Ring, O (For Automatic Transmission Case Plug)
35523	35523-22080	Clamp, Throttle Cable
35523	35523-30100	Clamp, Throttle Cable
9046108689	90461-08689	Clamp, Throttle Cable, No.4
9094901780	90949-01780	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)

OEM	Part name	Category
35520-30221	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
35523-22080	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
35523-30100	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
90301-09012	Ring, O (For Automatic Transmission Case Plug)	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
90461-08689	Clamp, Throttle Cable, No.4	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
90949-01780	New Genuine Part	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-60616	Bolt(For Transaxle Case Receiver)	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-B0616	Bolt(For Transaxle Case Receiver)	Throttle Link & Valve Lever (Atm) ([10.1991 - ] (9110- )LS130,131)

Source: Public OEM parts-catalog data
Variants: 1 / 24
Category: 218
Collected: 2026-08-03
