LS130

Toyota CROWN-MAJESTA · 1987 · 5,378 parts · 218 categories

5,378 items

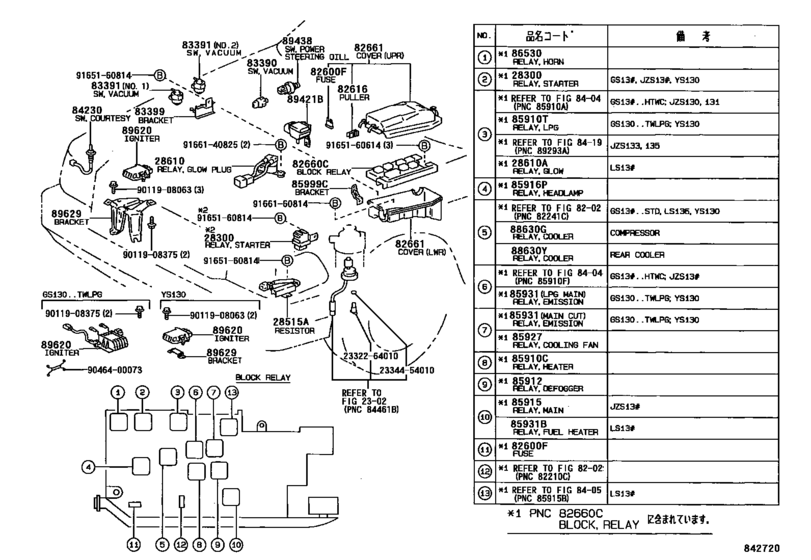

Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- )) 29

#	OEM	Part name
28300	28310-46010	Relay Assy, Starter
28300	28300-54110	Relay Assy, Starter
28300	28317-54020	Bracket, Starter Relay
28610	28610-54360	Relay Assy, Glow Plug
82600	90982-07011	Fuse, Fuse Block
82600	90982-09003	Fusible Link
82600	90982-09004	Fusible Link
82600	90982-09005	Fuse, Fuse Block
82616	82616-12010	Lever, Fuse
82660	82660-30501	Block Assy, Relay
82661	82662-30160	Cover, Relay Block, No.1
82661	82663-30060	Cover, Relay Block, No.1
83390	83390-30100	Switch Assy, Vacuum Warning
85910	90987-04002	Relay, Ignition, No.1
85912	90987-02009	Relay Assy
85916	90987-02006	Relay
85999	85999-30290	Bracket, Relay, No.2
86530	86530-20070	Relay Assy, Horn
88630	88630-87010	Relay Assy (For Heater Blower Motor)
2332264010	23322-64010	Drain Plug (For a Level Warning Switch)
2334454010	23344-54010	O-Ring (For Drain Plug)
9011908063	90119-08063	BOLT
9011908375	90119-08375	BOLT
9046400073	90464-00073	Clamp(For Resistive Cord)
9165160614	91651-60614	Bolt
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer
9166140825	91661-40825	New Genuine Part
9166160814	91661-60814	New Genuine Part

OEM	Part name	Category
23322-64010	Drain Plug (For a Level Warning Switch)	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
23344-54010	O-Ring (For Drain Plug)	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
28300-54110	Relay Assy, Starter	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
28310-46010	Relay Assy, Starter	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
28317-54020	Bracket, Starter Relay	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
28610-54360	Relay Assy, Glow Plug	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
82616-12010	Lever, Fuse	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
82660-30501	Block Assy, Relay	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
82662-30160	Cover, Relay Block, No.1	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
82663-30060	Cover, Relay Block, No.1	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
83390-30100	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
85999-30290	Bracket, Relay, No.2	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
86530-20070	Relay Assy, Horn	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
88630-87010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90119-08063	BOLT	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90119-08375	BOLT	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90464-00073	Clamp(For Resistive Cord)	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90982-07011	Fuse, Fuse Block	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90982-09003	Fusible Link	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90982-09004	Fusible Link	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90987-02006	Relay	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90987-02009	Relay Assy	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
90987-04002	Relay, Ignition, No.1	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
91651-60614	Bolt	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
91651-B0814	Bolt with washer	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
91661-40825	New Genuine Part	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
91661-60814	New Genuine Part	Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9110- ))
