LS130

Toyota CROWN-MAJESTA · 1987 · 5,378 parts · 218 categories

← Back to categories

5,378 items

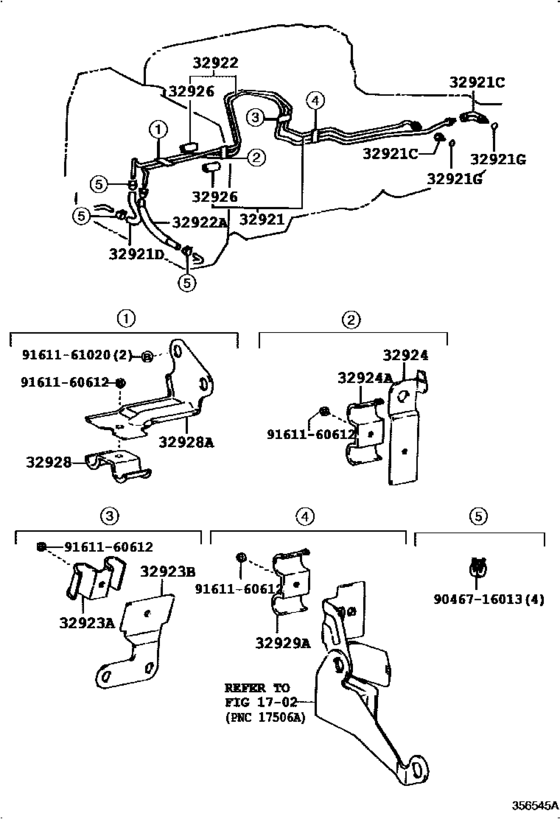

Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131) 19

#	OEM	Part name
32921	32921-30560	Tube, Oil Cooler Inlet, No.1
32921	90404-16029	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	32941-35121	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-30560	Tube, Oil Cooler Outlet, No.1
32922	90445-17103	Hose, Oil Cooler Tube(For Inlet)
32923	90462-12047	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-30140	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	32924-30090	Clamp, Oil Cooler Tube, No.2
32926	32926-26010	Cushion, Oil Cooler Tube(Atm)
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	32928-30100	Clamp(For Flexible Hose Clamp)
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
32921-30560	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32922-30560	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32923-30140	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32924-30090	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32926-26010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32928-30100	Clamp(For Flexible Hose Clamp)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
32941-35121	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90404-16029	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90445-17103	Hose, Oil Cooler Tube(For Inlet)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90462-12047	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-61020	Bolt(For Transaxle & Engine Setting)	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Oil Cooler & Tube (Atm) ([10.1991 - ] (9110- )LS130,131)
