Search › Model › LS130
LS130

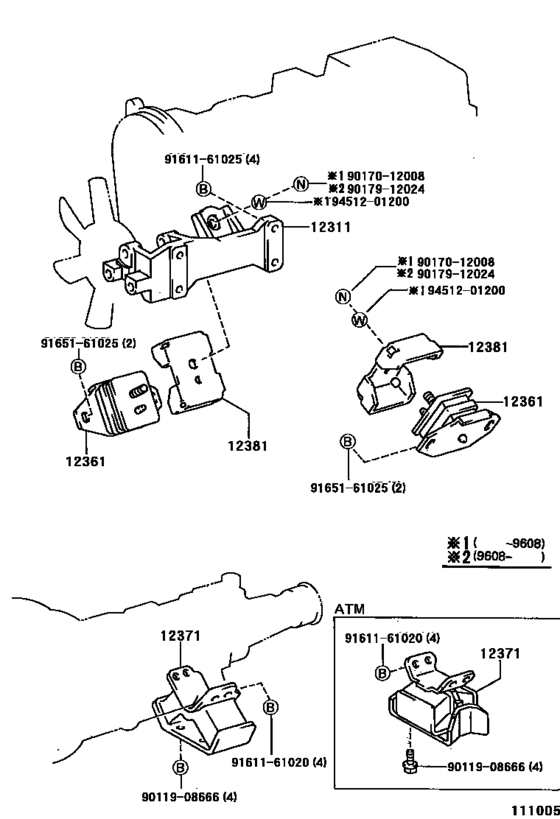

Mounting ([10.1991 - ] (9110- )2LT#,2L) 14
| # | OEM | Part name |
|---|---|---|
| 12311 | 12311-54160 | Bracket, Engine Mounting, Front No.1 Rh |
| 12361 | 12361-54131 | Insulator, Engine Mounting, Front |
| 12361 | 12362-54021 | Insulator, Engine Mounting, Front |
| 12371 | 12371-54024 | Insulator, Engine Mounting, Rear No.1 |
| 12381 | 12381-54010 | Stabilizer, Engine Mounting |
| 9011908666 | 90119-08666 | New Genuine Part |
| 9017012008 | 90170-12008 | NUT |
| 9017912024 | 90179-12024 | NUT |
| 9161161020 | 91611-61020 | Bolt(For Transaxle & Engine Setting) |
| 9161161020 | 91612-B1020 | Bolt (For Transfer Case)Cover No.2 |
| 9161161025 | 91611-61025 | Bolt(For Transaxle & Engine Setting) |
| 9161161025 | 91612-61025 | Bolt (For Control Shaft Cover) |
| 9165161025 | 91651-61025 | Bolt with washer |
| 9451201200 | 94512-01200 | Washer |
| OEM | Part name | Category |
|---|---|---|
| 12311-54160 | Bracket, Engine Mounting, Front No.1 Rh | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 12361-54131 | Insulator, Engine Mounting, Front | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 12362-54021 | Insulator, Engine Mounting, Front | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 12371-54024 | Insulator, Engine Mounting, Rear No.1 | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 12381-54010 | Stabilizer, Engine Mounting | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 90119-08666 | New Genuine Part | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 90170-12008 | NUT | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 90179-12024 | NUT | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 91611-61020 | Bolt(For Transaxle & Engine Setting) | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 91611-61025 | Bolt(For Transaxle & Engine Setting) | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 91612-61025 | Bolt (For Control Shaft Cover) | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 91612-B1020 | Bolt (For Transfer Case)Cover No.2 | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 91651-61025 | Bolt with washer | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
| 94512-01200 | Washer | Mounting ([10.1991 - ] (9110- )2LT#,2L) |
