Search › Model › LS130

LS130

Toyota CROWN-MAJESTA · 1987 · 5,378 parts · 218 categories

5,378 items

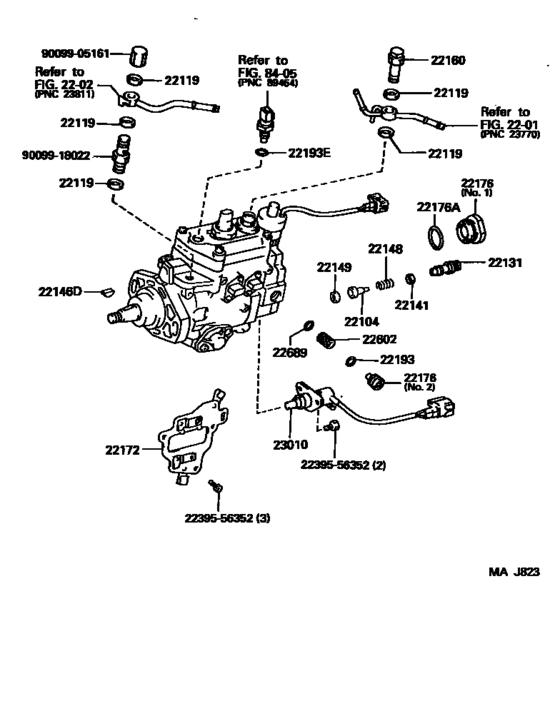

Injection Pump Body ([12.1995 - ] (9512- )2LTE) 25

#	OEM	Part name
22104	22104-5B250	Valve Sub-Assy, Injection Pump Delivery
22104	22104-5B440	Valve Sub-Assy, Injection Pump Delivery
22119	90201-12109	Washer, Air Bleeder Nipple
22131	22131-5B250	Holder, Delivery Valve
22141	22141-54010	Seat, Delivery Valve Spring
22146	90099-13017	Key(For Drive Gear)
22148	22148-5B250	Spring, Delivery Valve
22149	22149-56351	Gasket, Delivery Valve
22160	22160-54271	Screw Sub-Assy, Overflow
22172	22172-5B300	Clip, Connector Support, Solenoid
22172	22172-67030	Clip, Connector Support, Solenoid
22176	22176-54640	Plug, Distributive Head
22176	22176-5B302	Plug, Distributive Head
22176	22193-54772	Ring, O(For Distributive Head Plug)
22176	90099-14052	Ring, O(For Distributive Head Plug)
22193	22193-5B302	Ring, O(For Lever Connecting Pin)
22193	22193-67030	Ring, O(For Lever Connecting Pin)
22602	22602-56350	Filter Sub-Assy, Fuel Injection Pump
22689	22689-56350	Washer(For Swivel Nipple)
23010	23010-54030	Valve Assy, Timing Control
23010	23010-54040	Valve Assy, Timing Control
23010	23010-67030	Valve Assy, Timing Control
2239556352	22395-56352	Bolt, Socket(for Injection Pump Governor Cover)
9009905161	90099-05161	Nut, Timer Round
9009918022	90099-18022	SCREW

OEM	Part name	Category
22104-5B250	Valve Sub-Assy, Injection Pump Delivery	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22104-5B440	Valve Sub-Assy, Injection Pump Delivery	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22131-5B250	Holder, Delivery Valve	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22141-54010	Seat, Delivery Valve Spring	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22148-5B250	Spring, Delivery Valve	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22149-56351	Gasket, Delivery Valve	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22160-54271	Screw Sub-Assy, Overflow	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22172-5B300	Clip, Connector Support, Solenoid	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22172-67030	Clip, Connector Support, Solenoid	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22176-54640	Plug, Distributive Head	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22176-5B302	Plug, Distributive Head	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22193-54772	Ring, O(For Distributive Head Plug)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22193-5B302	Ring, O(For Lever Connecting Pin)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22193-67030	Ring, O(For Lever Connecting Pin)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22395-56352	Bolt, Socket(for Injection Pump Governor Cover)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22602-56350	Filter Sub-Assy, Fuel Injection Pump	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
22689-56350	Washer(For Swivel Nipple)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
23010-54030	Valve Assy, Timing Control	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
23010-54040	Valve Assy, Timing Control	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
23010-67030	Valve Assy, Timing Control	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
90099-05161	Nut, Timer Round	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
90099-13017	Key(For Drive Gear)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
90099-14052	Ring, O(For Distributive Head Plug)	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
90099-18022	SCREW	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
90201-12109	Washer, Air Bleeder Nipple	Injection Pump Body ([12.1995 - ] (9512- )2LTE)
